Complete heating and cooling solutions for every need, from residential spaces to large commercial projects. We deliver efficient systems with advanced technology for comfort, energy savings, and reliable performance.
Single Zone, wall mounted split systems
Multi-zone solutions catered to your needs
Centralized systems designed for large residential and commercial spaces
Energy-efficient solutions for heating and hot water
Single zone, wall-mounted split unit systems consisting of two main components: an indoor unit that delivers conditioned air into the room and an outdoor unit that houses the compressor and condenser. Designed for residential applications, they provide efficient and reliable heating and cooling while offering excellent energy efficiency, flexible room-by-room climate control, and easy installation and maintenance

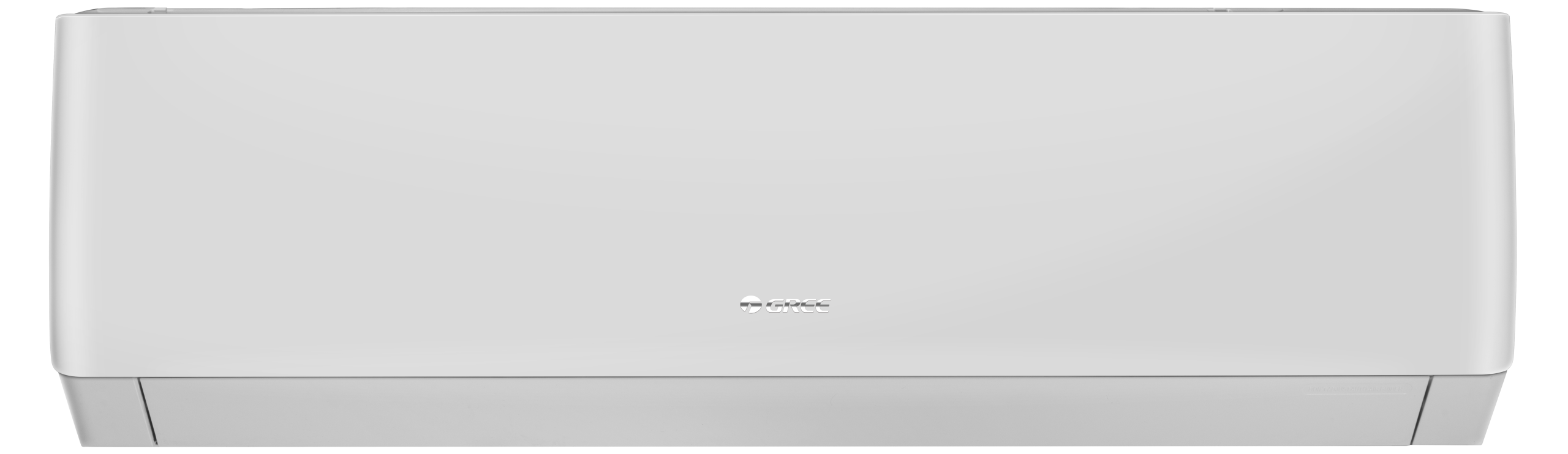

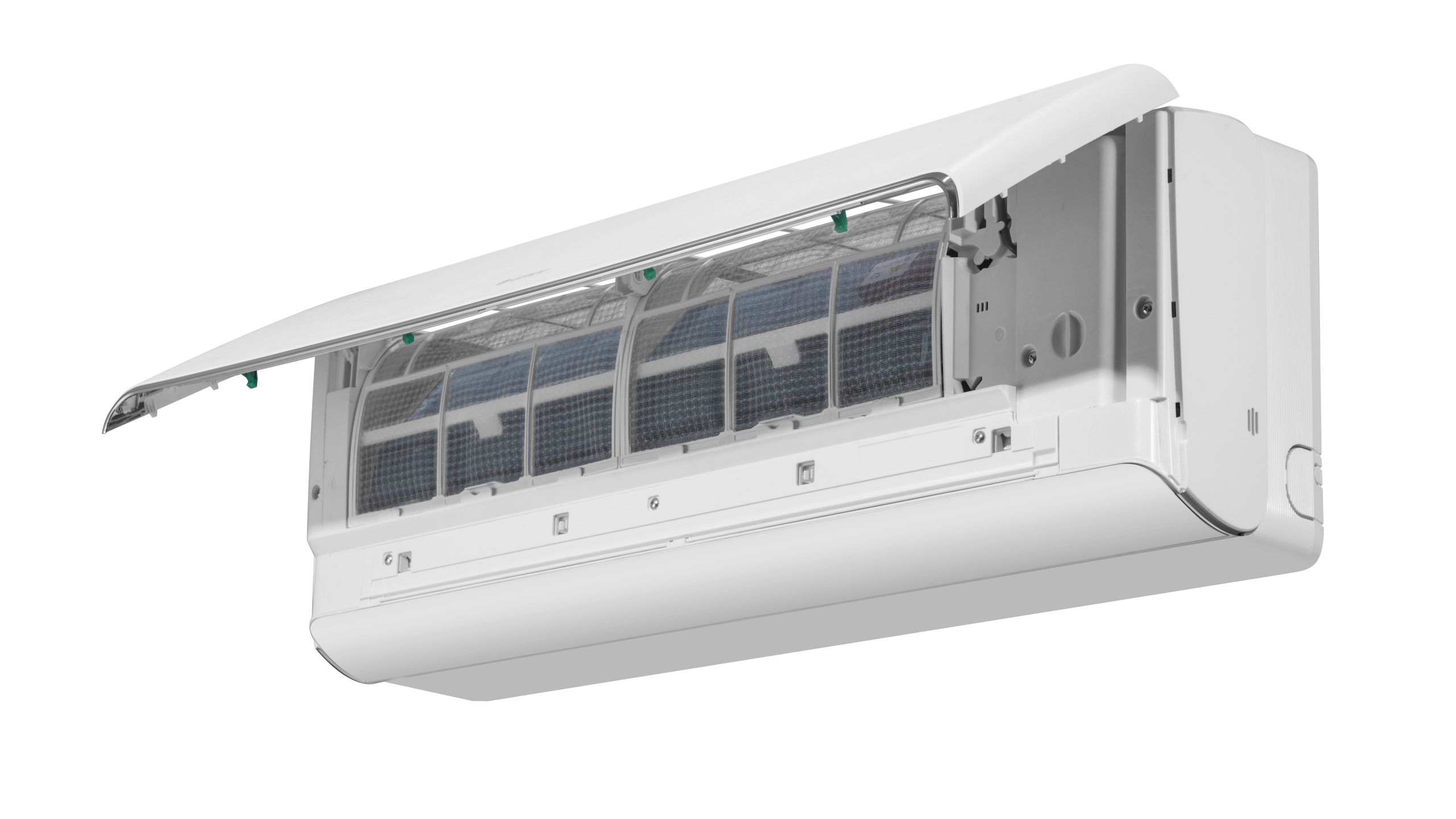

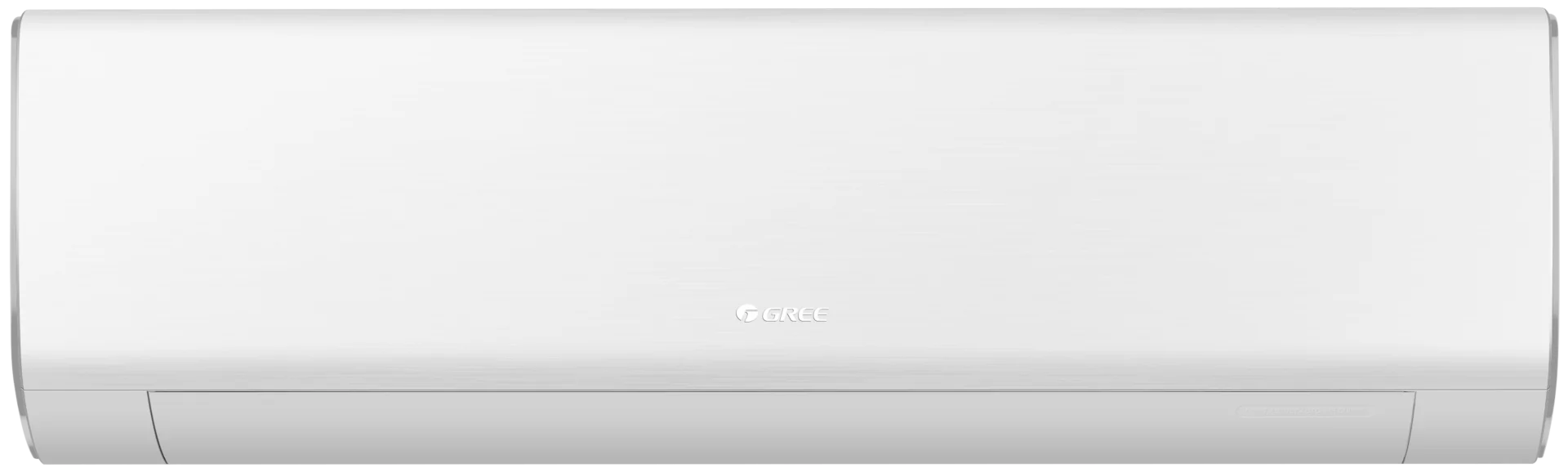

A perfect balance of reliability and advanced technology

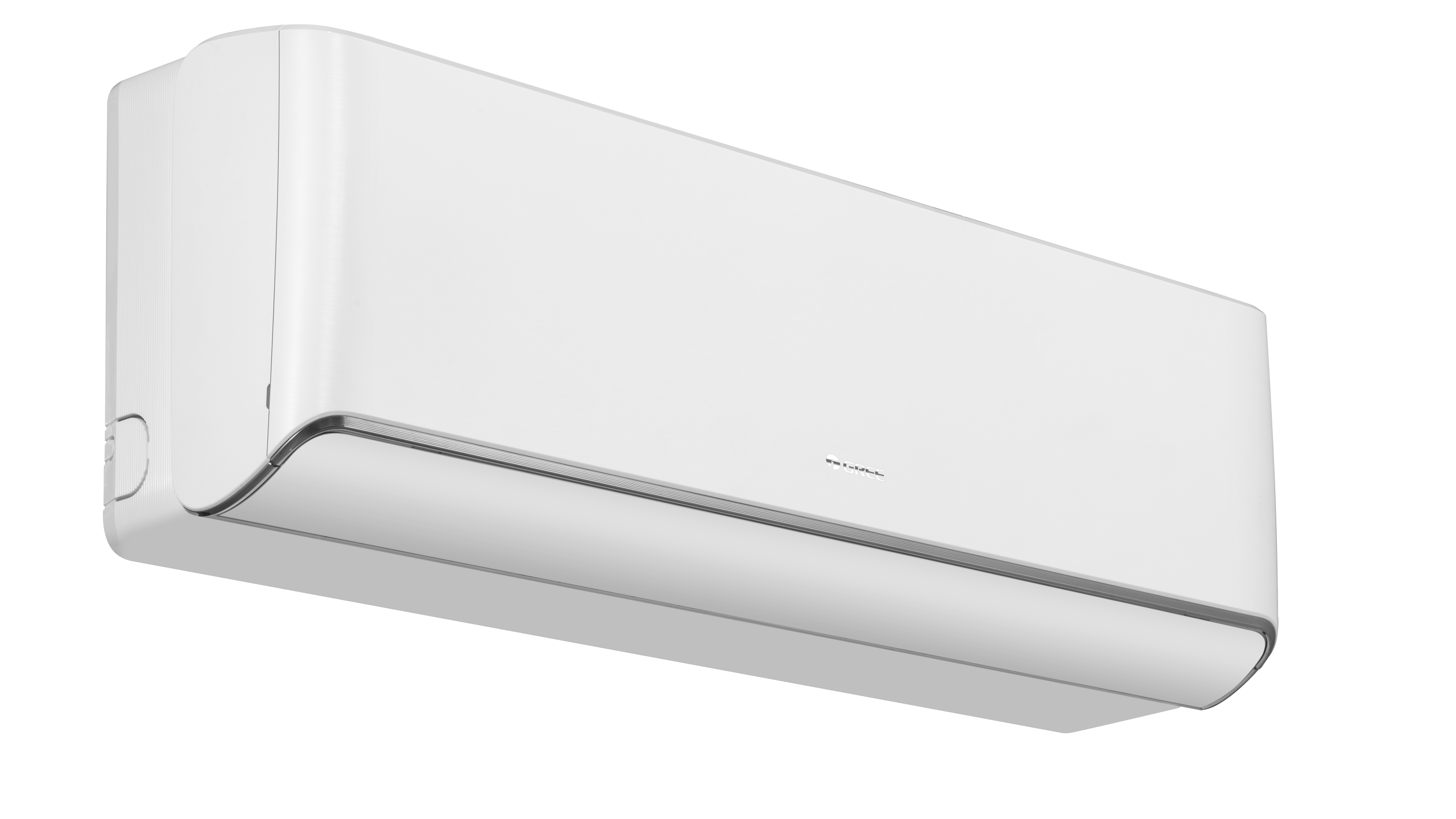

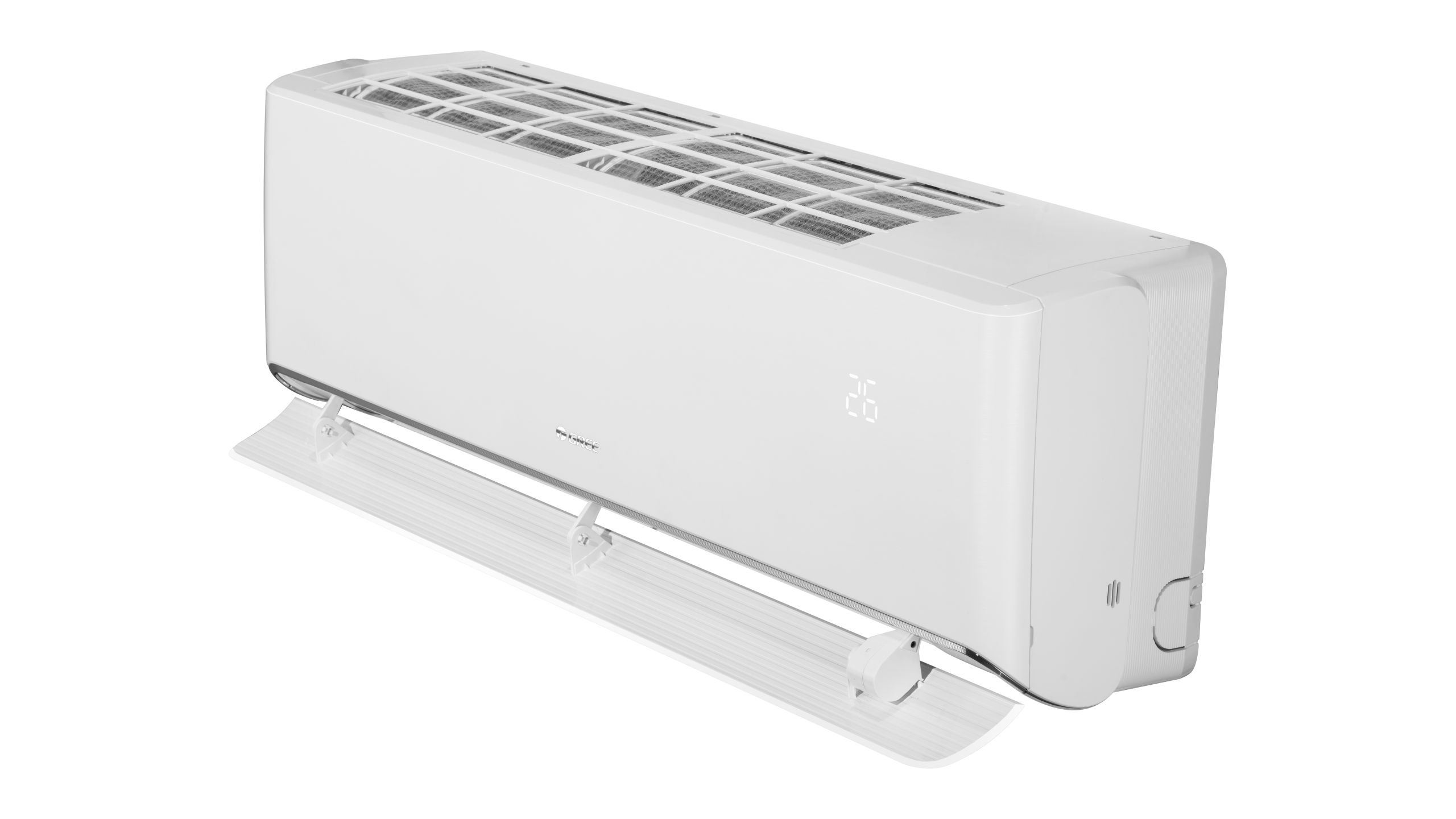

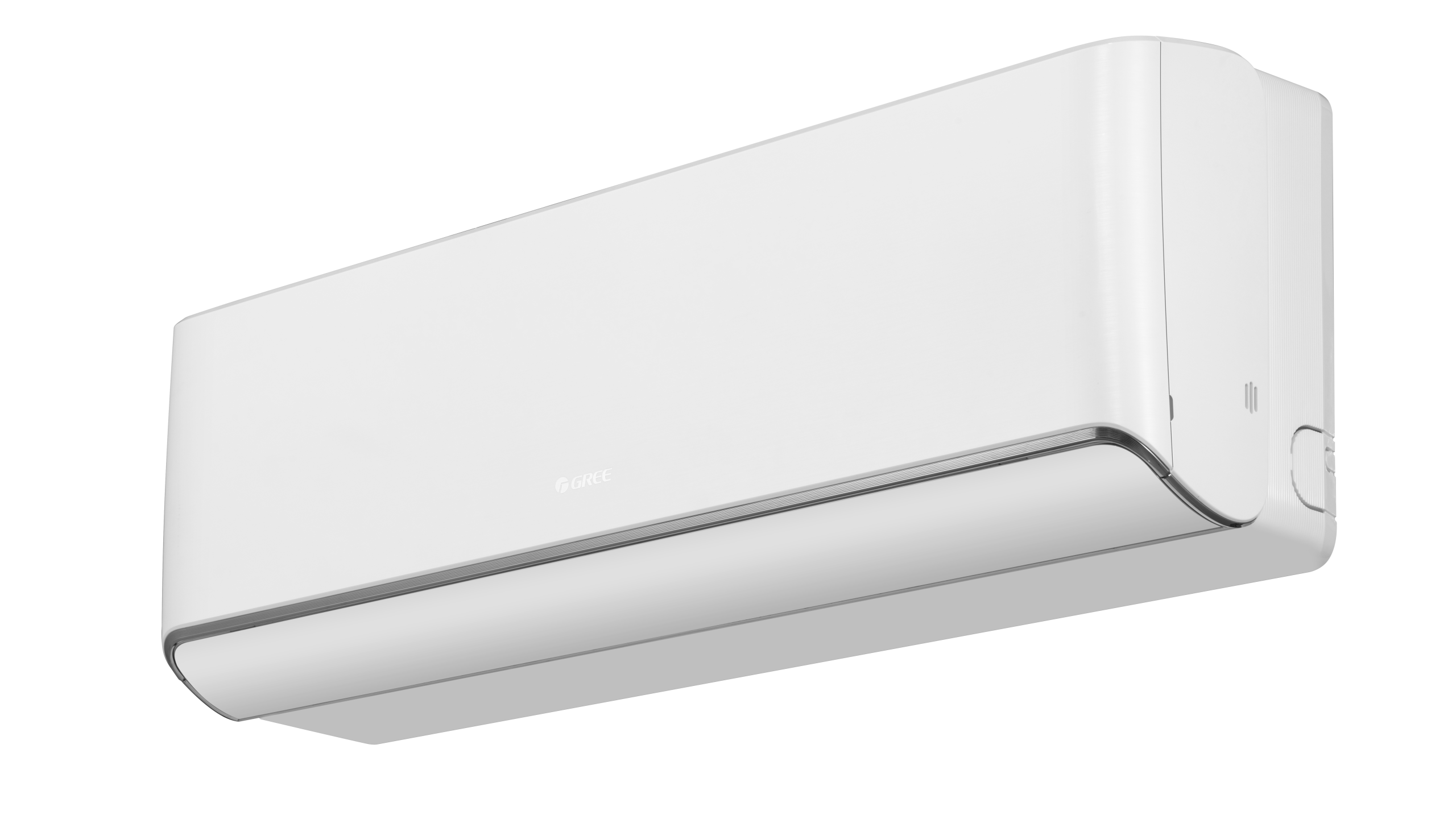

An intelligent climate control system featuring advanced technologies

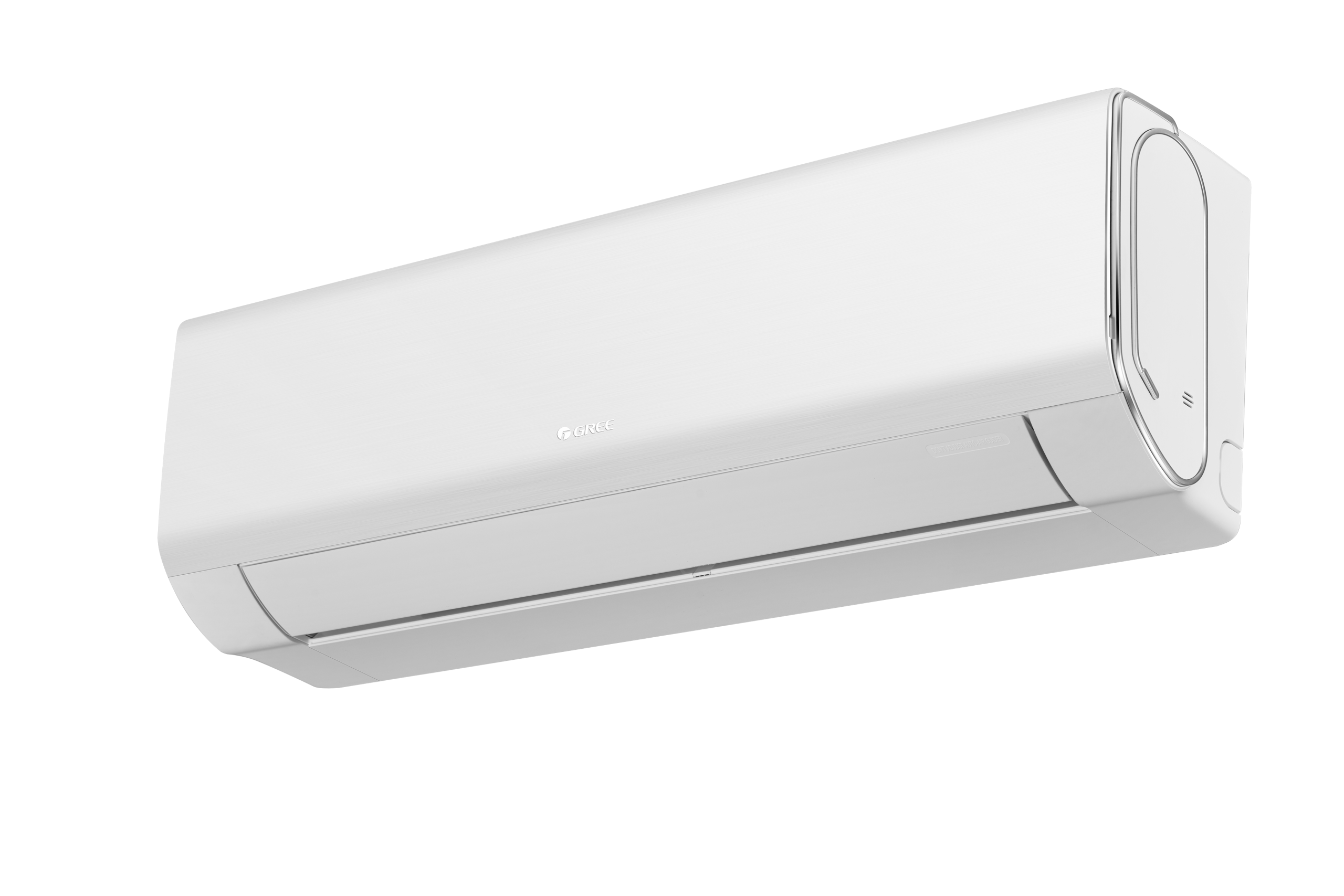

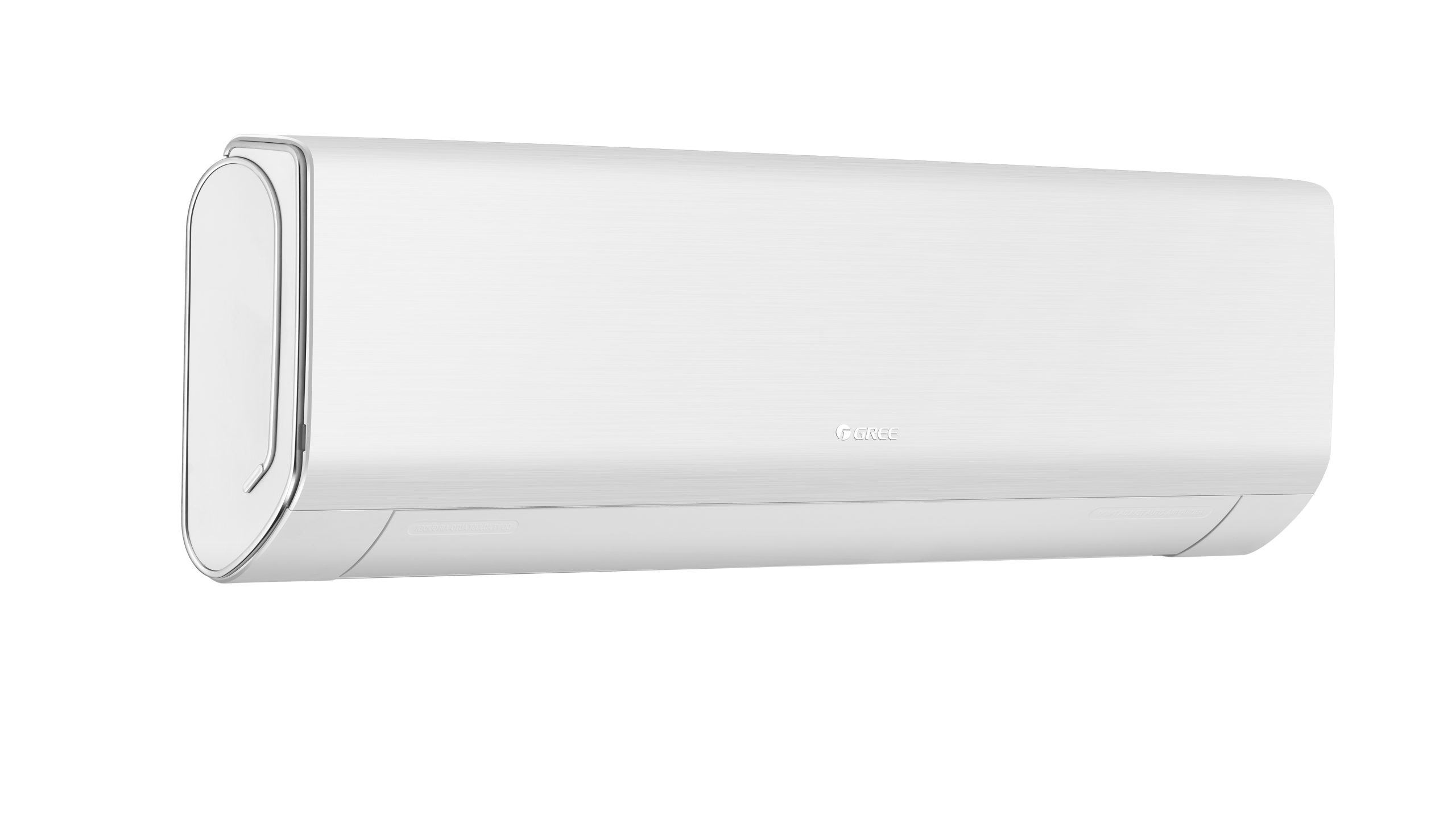

A premium air conditioning solution with G-AI technology that automatically adapts to real-time room conditions

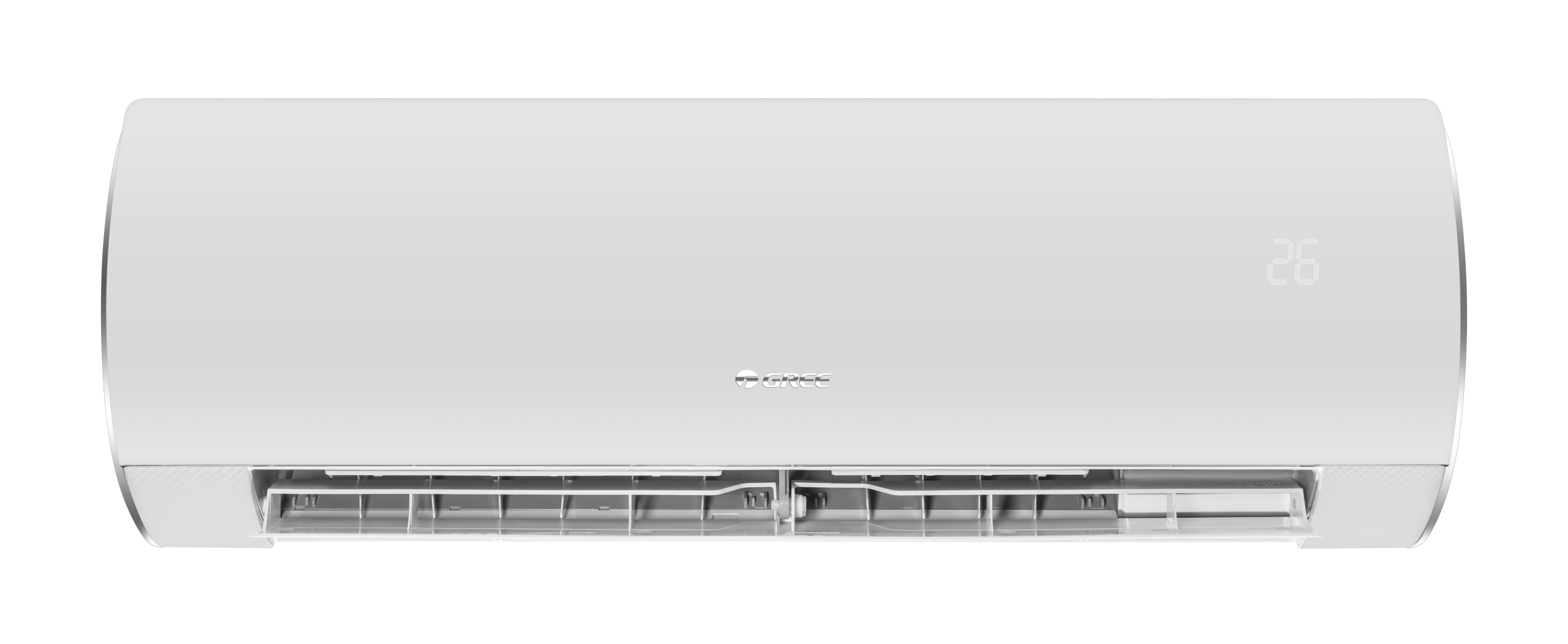

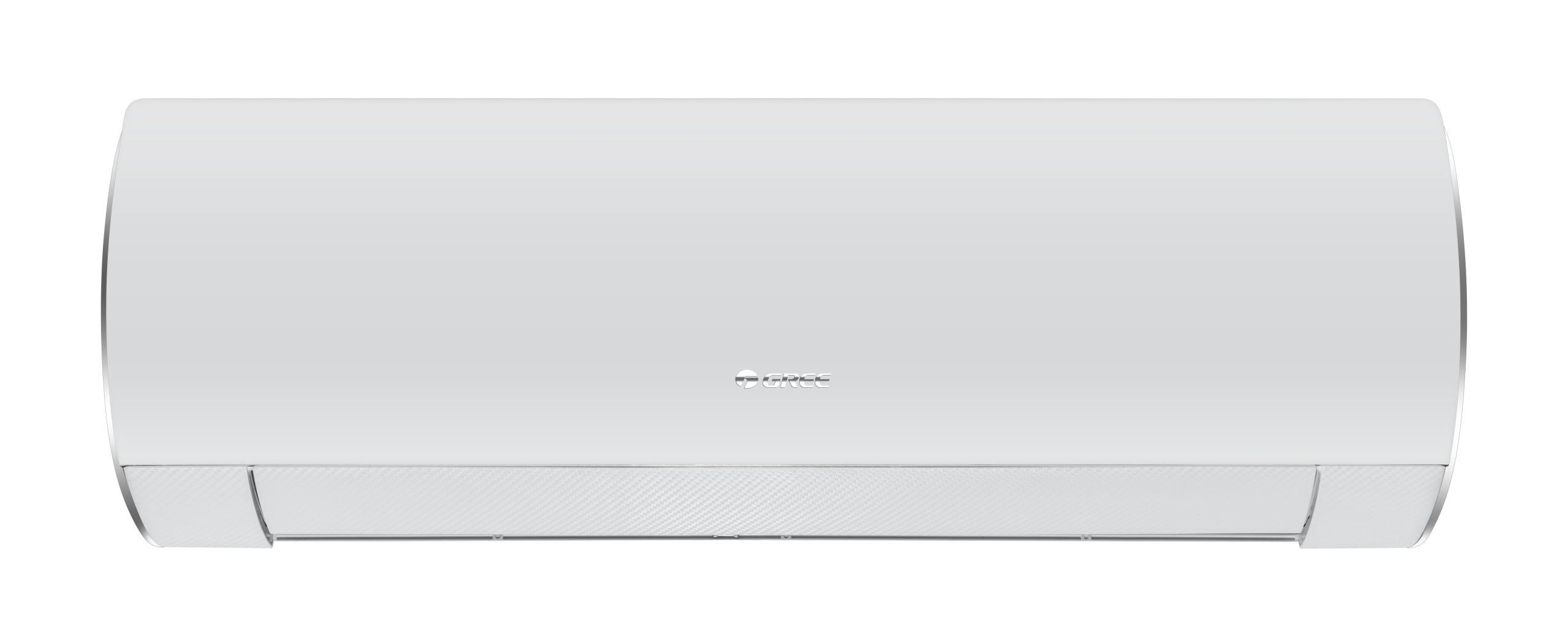

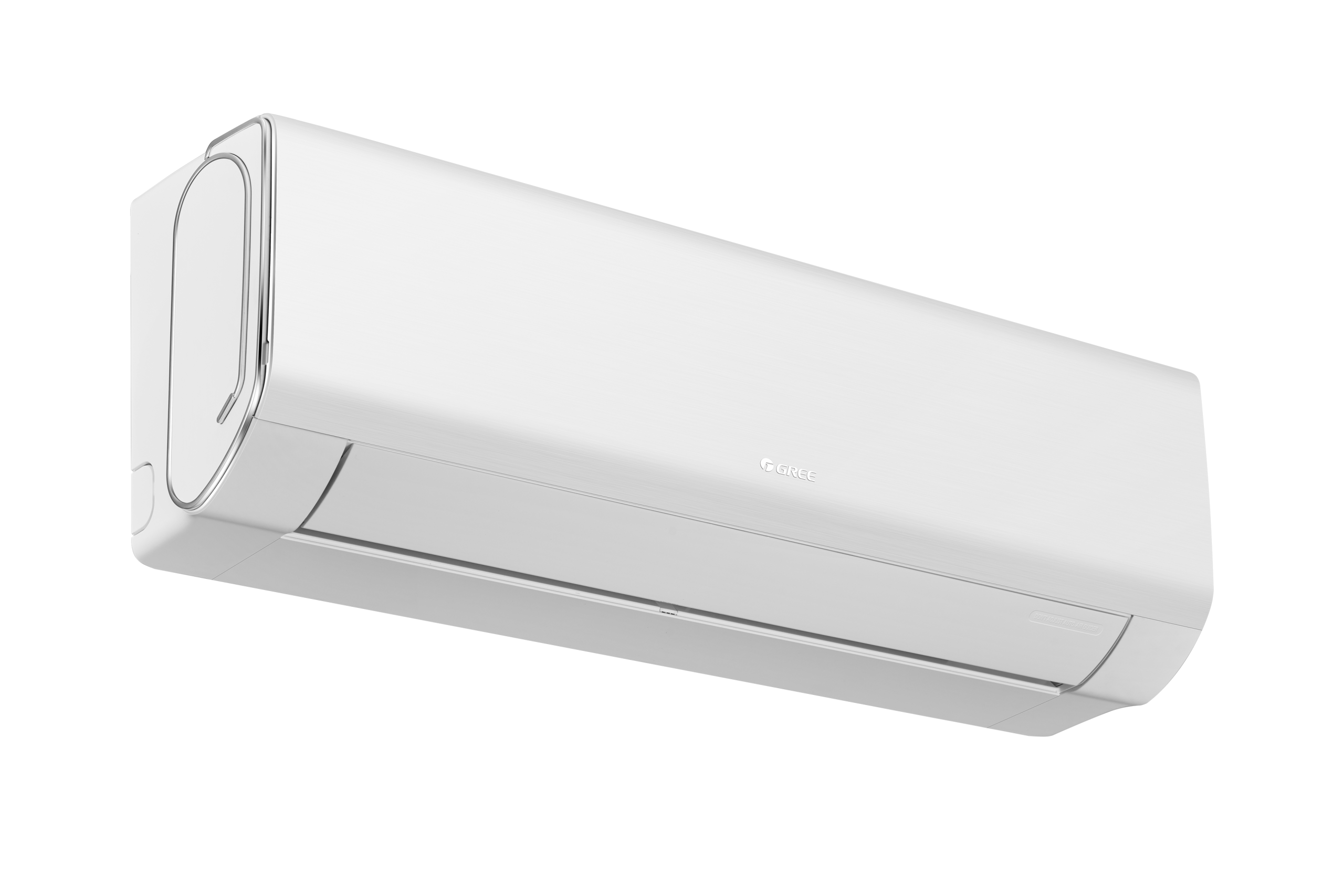

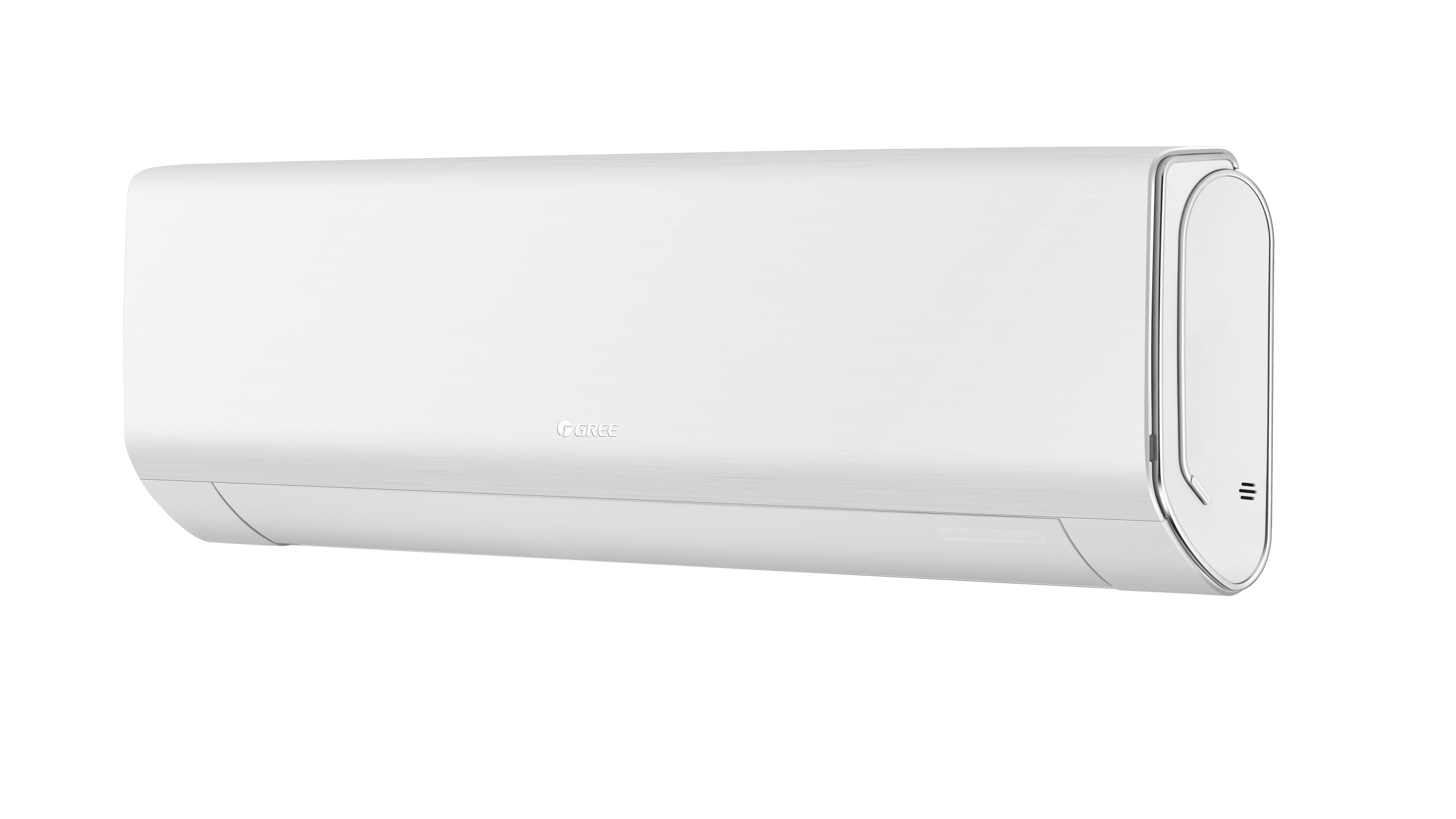

A sleek and compact air conditioner designed for effortless comfort

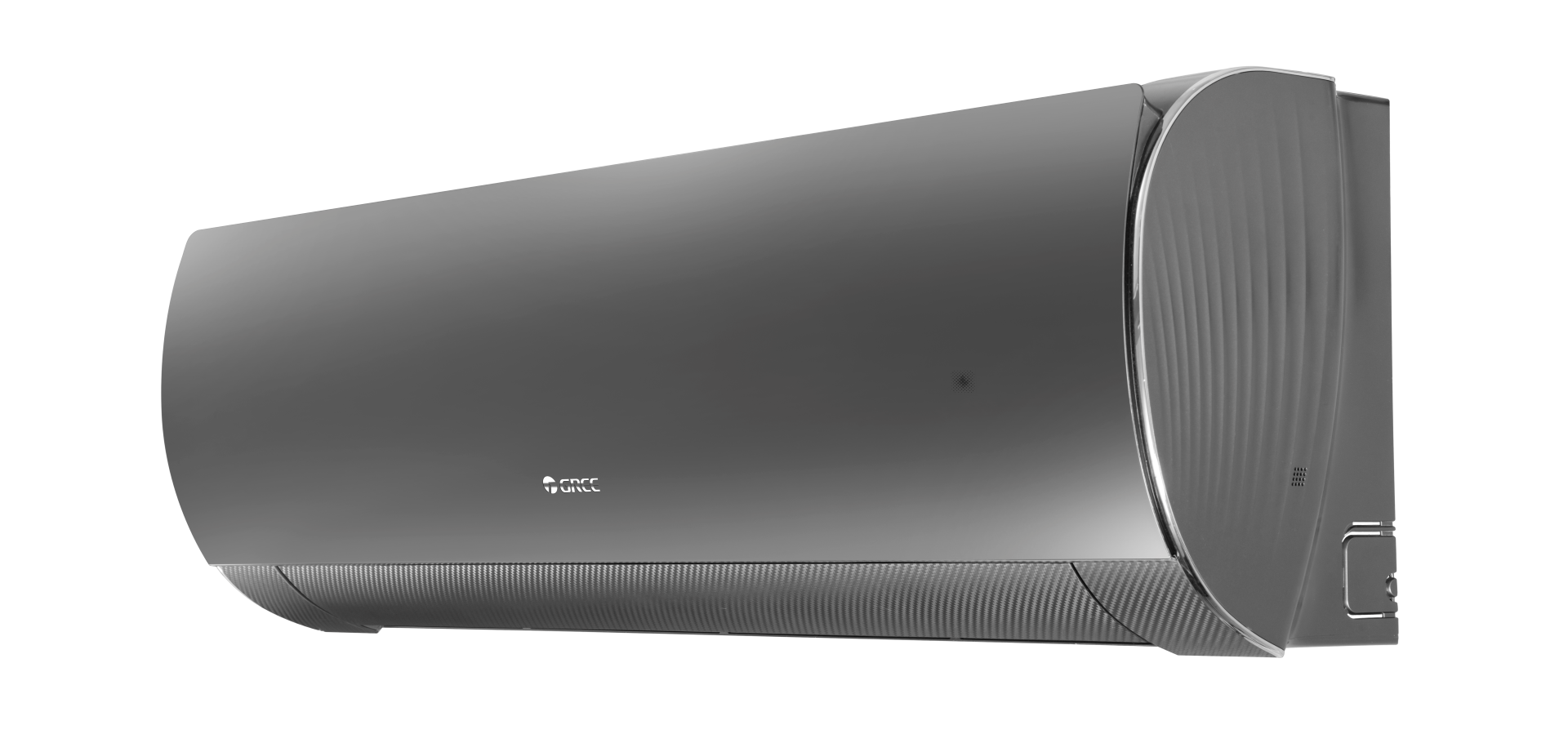

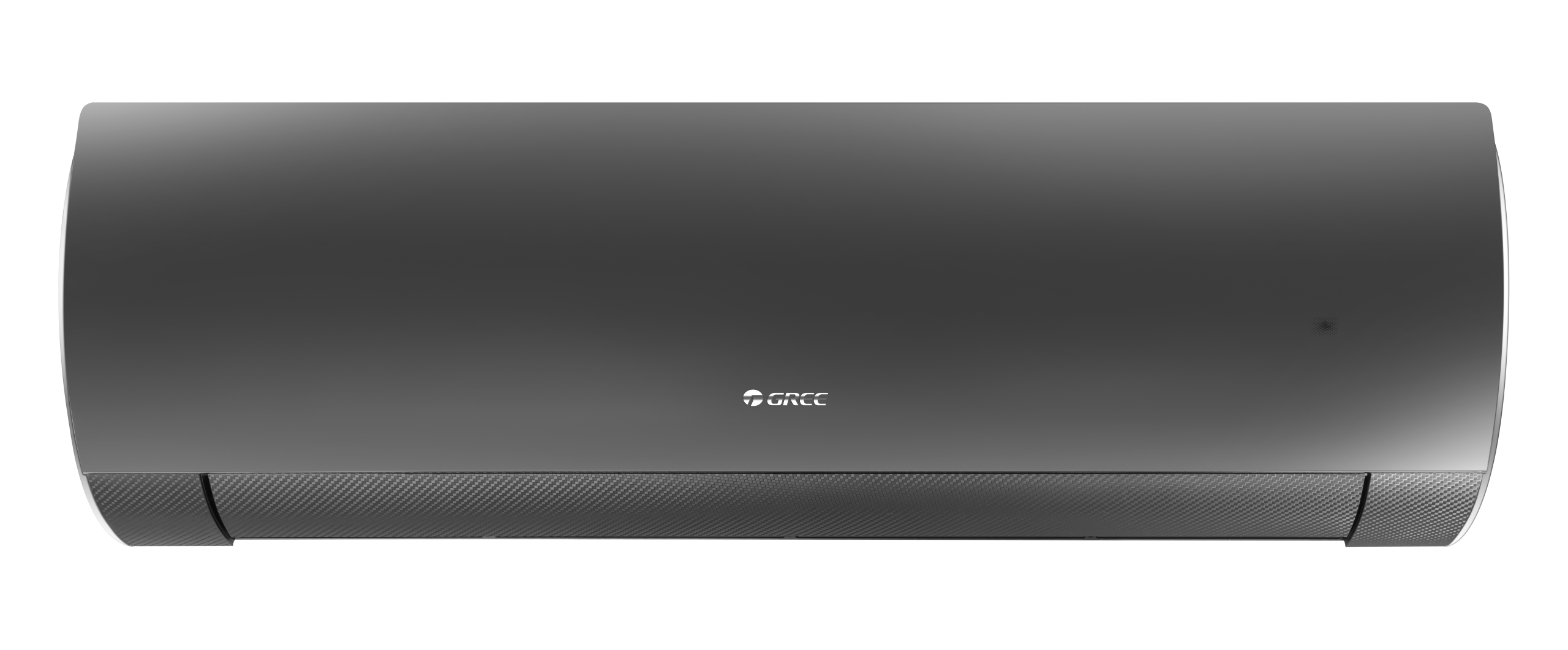

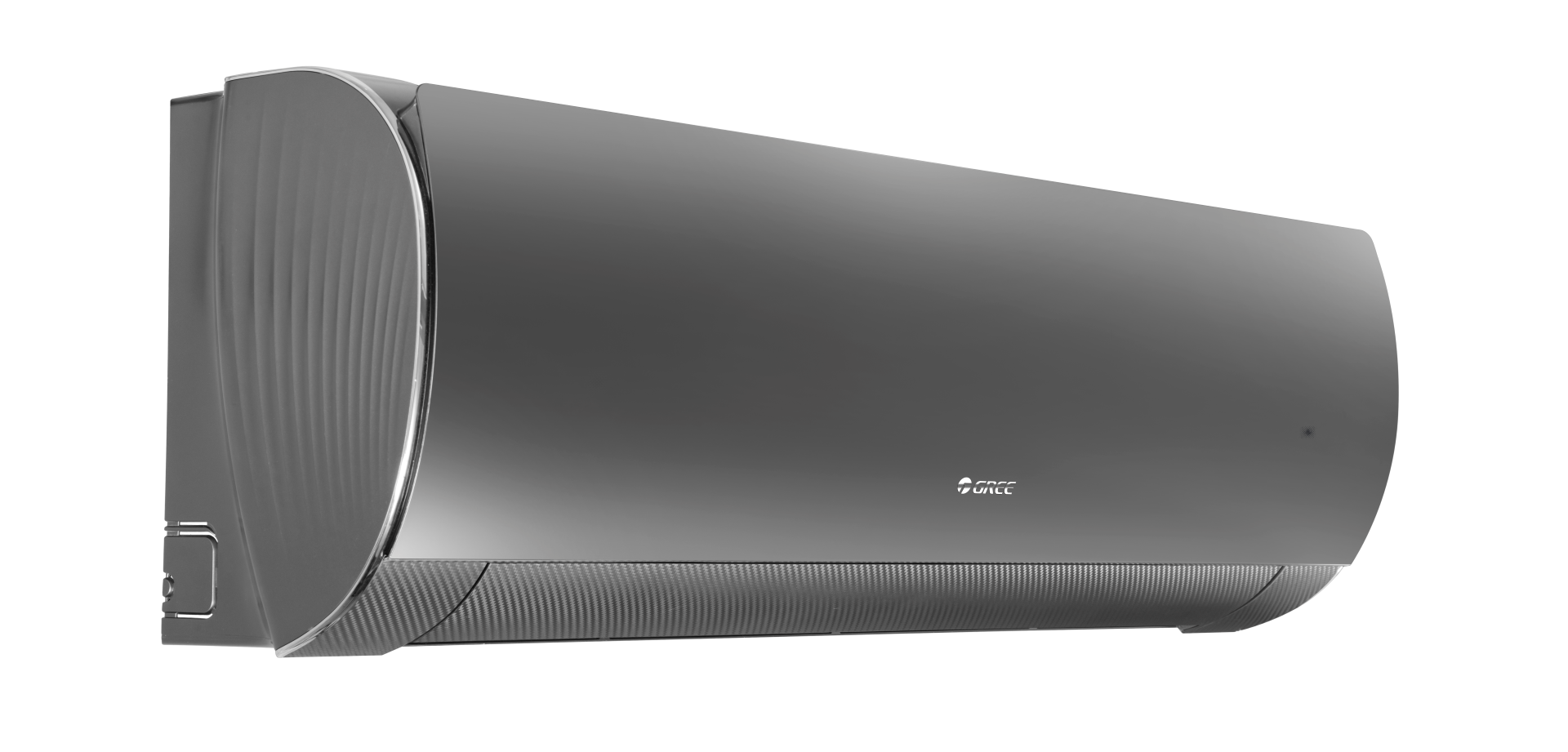

A sleek charcoal air conditioner, crafted for modern interiors and effortless comfort
| Technical Specification | 9K | 12K | 16K | 18K | 21K | 24K |
|---|---|---|---|---|---|---|
| Model | GWH09AGAXB-K6DNA1C/I | GWH12AGBXB-K6DNA1F/I | GWH18AGDXB-K6DNA1Z/I | GWH18AGDXD-K6DNA1Z/I | GWH24AGDXE-K6DNA1Z/I | GWH24AGE-K6DNA1A/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 90009500 | 1200012000 | 1570017700 | 1800018250 | 2100022000 | 2420026600 |
| Energy Class | A++A+++ | A++A+++ | A++A+++ | A++A+++ | A++A+++ | A++A+++ |
| Application Area m² | 10-16 | 15-22 | 21-31 | 23-34 | 23-34 | 27-42 |
| Indoor Unit Dimensions (W/H/D) mm | 704x260x185 | 779x260x185 | 982x311x221 | 982x311x221 | 982x311x221 | 1075x333x246 |
| Indoor Net Weight Kg | 7.5 | 8 | 13.5 | 12.5 | 14 | 16 |
| Outdoor Unit Dimensions (W/H/D) mm | 732x555x330 | 732x555x330 | 732x555x330 | 802x555x350 | 873x555x376 | 958x660x402 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Max Distance Height / Length m | 10/25 | 10/25 | 10/25 | 10/25 | 10/25 | 10/25 |
| Cooling Power Input (W) | 660 | 991 | 1355 | 1582 | 1786 | 2030 |
| Air Flow Volume (SS/H/M/L) m³/h | 500/470/390/270 | 590/520/400/320 | 910/850/740/650 | 1000/850/650/520 | 1050/950/750/650 | 1250/1100/950/850 |
| Sound Pressure Level (SS/H/M/L/SL) dB | 38/36/32/25/22 | 41/37/33/26/24 | 44/39/34/30/29 | 45/42/37/29/26 | 46/42/37/32/30 | 48/44/40/36/33 |
| COP (W/W) | 4 | 3.71 | 3.88 | 3.84 | 3.95 | 3.9 |
| SEER | 6.8 | 6.5 | 7.3 | 7.3 | 6.8 | 7 |
| WiFi | YES | YES | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES | YES | YES |
| Cold Plasma | YES | NO | YES | YES | NO | YES |
| Eurovent | YES | YES | YES | YES | YES | YES |
| Technical Specification | 9K | 12K | 18K | 24K |
|---|---|---|---|---|
| Model (White / Charcoal) | GWH09BCCXB-K6DNA1A/I | GWH12BCCXD-K6DNA1D/I | GWH18BCDXE-K6DNA1A/I | GWH24BCEXF-K6DNA1A/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 920010230 | 1200013000 | 1740019000 | 2400026600 |
| Energy Class | A+++A+++ | A+++A+++ | A+++A+++ | A+++A+++ |
| Application Area m² | 12-18 | 16-24 | 23-34 | 23-34 |
| Indoor Unit Dimensions (W/H/D) mm | 886x276x209 | 886x276x209 | 1006x333x250 | 1144x333x250 |
| Indoor Net Weight Kg | 9.5 | 9.5 | 14 | 16.5 |
| Outdoor Unit Dimensions (W/H/D) mm | 732x555x330 | 802x555x350 | 873x555x376 | 958x660x402 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Max Distance Height / Length m | 10/20 | 10/20 | 10/25 | 10/25 |
| Cooling Power Input (W) | 670 | 910 | 1417 | 1868 |
| Air Flow Volume (SS/H/M/L) m³/h | 610/530/450/290 | 650/540/405/330 | 1000/960/810/640 | 1250/1100/950/850 |
| Sound Pressure Level (SS/H/M/L/SL/SM) dB | 39/36/30/23/21/18 | 43/39/34/30/24/18 | 47/45/41/33/30/26 | 48/44/40/37/35/27 |
| COP (W/W) | 4.45 | 4.1 | 4.1 | 4.1 |
| SEER | 8.5 | 8.5 | 8.5 | 8.5 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES |
| Eurovent | YES | YES | NO | YES |
| Technical Specification | 9K | 12K | 18K | 24K |
|---|---|---|---|---|
| Model | GWH09AVCXB-K6DNA1B/I | GWH12AVCXD-K6DNA1A/I | GWH18AVDXE-K6DNA1A/I | GWH24AVEXF-K6DNA1A/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 920010200 | 1200013000 | 1800019000 | 2400026600 |
| Energy Class | A+++A+++ | A+++A+++ | A+++A+++ | A+++A+++ |
| Application Area m² | 12-18 | 16-24 | 23-34 | 23-34 |
| Indoor Unit Dimensions (W/H/D) mm | 907x292x200 | 907x292x200 | 970x347x257 | 1110x347x257 |
| Indoor Net Weight Kg | 10.5 | 10.5 | 15 | 17.5 |
| Outdoor Unit Dimensions (W/H/D) mm | 732x555x330 | 802x555x350 | 873x555x376 | 958x660x402 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Max Distance Height / Length m | 10/15 | 10/20 | 10/25 | 10/25 |
| Cooling Power Input (W) | 600 | 875 | 1472 | 1868 |
| Air Flow Volume (SS/H/M/L) m³/h | 680/600/470/350 | 720/600/470/380 | 1100/1000/850/730 | 1350/1150/950/850 |
| Sound Pressure Level (SS/H/M/L/SL) dB | 41/38/34/26/22 | 44/38/34/29/25 | 45/43/41/31/28 | 51/47/42/37/35 |
| COP (W/W) | 4.41 | 4 | 4.1 | 4.1 |
| SEER | 8.5 | 8.5 | 8.5 | 8.5 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES |
| Eurovent | YES | YES | YES | YES |
| Technical Specification | 9K | 12K | 18K | 24K |
|---|---|---|---|---|
| Model (White) | GWH09ACC-K6DNA1A/I | GWH12ACC-K6DNA1D/I | GWH18ACD-K6DNA1D/I | GWH24ACE-K6DNA1A/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h (W) | 920010200 | 1200013000 | 1770019100 | 2420026600 |
| Energy Class | A++A+++ | A++A+++ | A++A+++ | A++A+++ |
| Application Area m² | 12-18 | 16-24 | 23-34 | 27-42 |
| Indoor Unit Dimensions (W/H/D) mm | 889x294x212 | 889x294x212 | 1013x307x221 | 1122x329x247 |
| Indoor Net Weight Kg | 11 | 11 | 13.5 | 16.5 |
| Outdoor Unit Dimensions (W/H/D) mm | 732x555x330 | 732x550x330 | 802x555x350 | 958x660x402 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Max Distance Height / Length m | 10/15 | 10/15 | 10/25 | 10/25 |
| Cooling Power Input (W) | 695 | 962 | 1576 | 2030 |
| Air Flow Volume (SS/H/M/L) m³/h | 610/570/470/420 | 700/650/540/420 | 850/750/610/520 | 1250/1100/950/850 |
| Sound Pressure Level (SS/H/M/L/SL) dB | 38/36/31/27/25 | 42/38/32/26/25 | 44/43/38/34/30 | 48/44/40/36/33 |
| COP (W/W) | 4.29 | 4 | 3.9 | 3.9 |
| SEER | 7.5 | 7.1 | 7.1 | 7 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES |
| Eurovent | YES | YES | YES | YES |
| Technical Specification | 9K | 12K | 18K | 24K |
|---|---|---|---|---|
| Model (Charcoal) | GWH09ACC-K6DNA1F/I-BLACK | GWH12ACC-K6DNA1F/I BLACK | GWH18ACD-K6DNA1I/I BLACK | GWH24ACE-K6DNA1I/I BLACK |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h (W) | 920010200 | 1200013000 | 1770019100 | 2420026600 |
| Energy Class | A++A+++ | A++A+++ | A++A+++ | A++A+++ |
| Application Area m² | 12-18 | 16-24 | 23-34 | 27-42 |
| Indoor Unit Dimensions (W/H/D) mm | 889x294x212 | 889x294x212 | 1013x307x221 | 1122x329x247 |
| Indoor Net Weight Kg | 11 | 11 | 13.5 | 16.5 |
| Outdoor Unit Dimensions (W/H/D) mm | 732x555x330 | 732x550x330 | 802x555x350 | 958x660x402 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Max Distance Height / Length m | 10/15 | 10/15 | 10/25 | 10/25 |
| Cooling Power Input (W) | 695 | 962 | 1576 | 2030 |
| Air Flow Volume (SS/H/M/L) m³/h | 610/570/470/420 | 700/650/540/420 | 850/750/610/520 | 1250/1100/950/850 |
| Sound Pressure Level (SS/H/M/L/SL) dB | 38/36/31/27/25 | 42/38/32/26/25 | 44/43/38/34/30 | 48/44/40/36/33 |
| COP (W/W) | 4.29 | 4 | 3.9 | 3.9 |
| SEER | 7.5 | 7.1 | 7.1 | 7 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES |
| Eurovent | YES | YES | YES | YES |

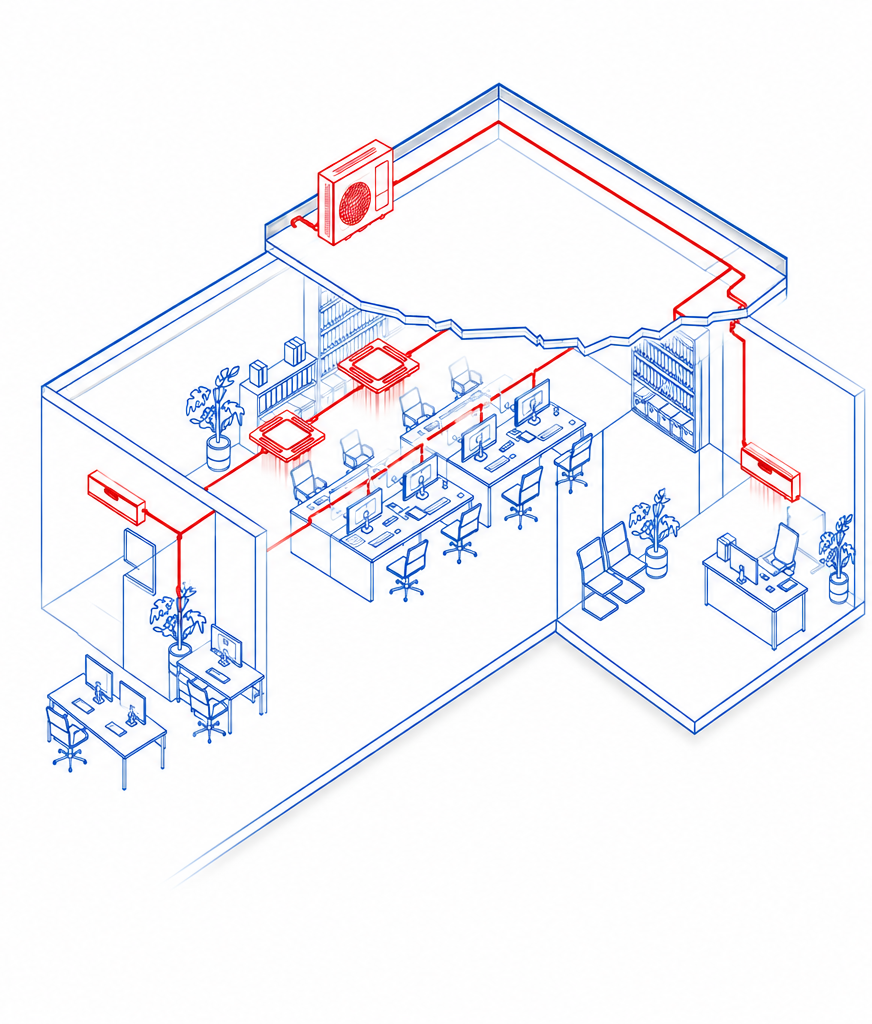

The Gree Variable Refrigerant Flow (VRF) air conditioning system delivers outstanding energy efficiency, intelligent climate control, and flexible installation for commercial and large residential buildings. Designed for reliable, year-round performance, ensures maximum comfort with advanced technology and precise temperature control

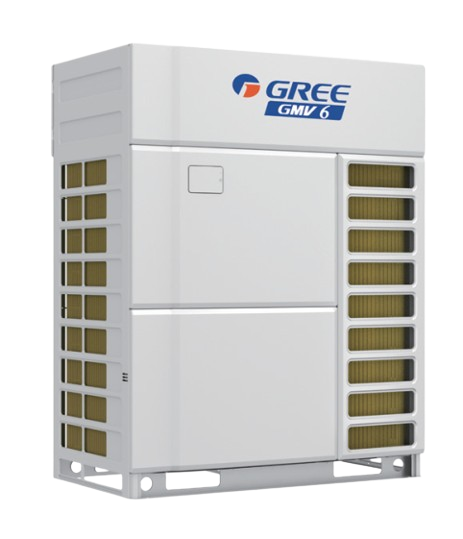

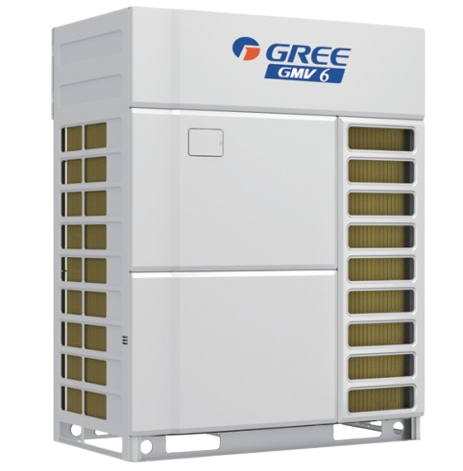

An outdoor VRF system, delivering high efficiency, reliable performance, and flexible capacity for commercial and large residential applications
HR series combines cooling, heating, domestic hot water, floor heating, and heat supply in one advanced VRF solution
Choose the indoor unit that best suits your space. Select from Wall-Mounted, Cassette, Duct or Floor Ceiling units for the perfect comfort solution
| Technical Specification | 12kW | 14kW | 16kW | 22.4kW | 22.4kW | 28kW | 28kW | 33.5kW | 33.5kW | 40kW | 45kW | 50.4kW | 56kW | 61.5kW |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | GMV-120WL/C-X | GMV-140WL/C-X | GMV-160WL/C-X | GMV-224WL/D-X | GMV-224WM/X-X | GMV-280WL/C1-X | GMV-280WM/X-X | GMV-335WL/C1-X | GMV-335WM/X-X | GMV-400WM/X-X | GMV-450WM/X-X | GMV-504WM/X-X | GMV-560WM/X-X | GMV-615WM/X-X |
| Series | GMV5 mini | GMV5 mini | GMV5 mini | GMV5 mini | GMV X Pro | GMV5 mini | GMV X Pro | GMV5 mini | GMV X Pro | GMV X Pro | GMV X Pro | GMV X Pro | GMV X Pro | GMV X Pro |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 4128547768 | 4776856298 | 5459261416 | 7640081900 | 7643085300 | 9553695536 | 95540107480 | 114302114302 | 114300127950 | 136480153540 | 153540170600 | 171960192780 | 191070214960 | 209840235430 |
| Outdoor Unit Dimensions (W/H/D) mm | 900x1345x340 | 900x1345x340 | 900x1345x340 | 940x1615x460 | 930x1690x775 | 940x1615x460 | 930x1690x775 | 940x1615x460 | 930x1690x775 | 1340x1690x775 | 1340x1690x775 | 1340x1690x775 | 1340x1690x775 | 1340x1690x775 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 3/8"-5/8" | 3/8"-5/8" | 3/8"-3/4" | 3/8"-3/4" | 3/8"-3/4" | 3/8"-7/8" | 3/8"-7/8" | 1/2"-1" | 1/2"-1" | 1/2"-1" | 1/2"-1 1/8" | 5/8"-1 1/8" | 5/8"-1 1/8" | 5/8"-1 1/8" |
| Max. Equivalent Connection Pipe Length (m) | 120 | 120 | 120 | 120 | 200 | 150 | 200 | 150 | 200 | 200 | 200 | 200 | 200 | 200 |
| Cooling Operation Ambient Temperature Range ℃ | -5~52 | -5~52 | -5~52 | -5~55 | -15~55 | -5~52 | -15~55 | -5~52 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 | -15~55 |
| Heating Operation Ambient Temperature Range ℃ | -20~27 | -20~27 | -20~27 | -20~27 | -30~27 | -20~27 | -30~27 | -20~27 | -30~27 | -30~27 | -30~27 | -30~27 | -30~27 | -30~27 |
| Cooling Power Input (kW) | 3.67 | 4.5 | 5.52 | 8 | 4.98 | 11.67 | 7.2 | 12.88 | 9.28 | 9.95 | 12.5 | 13.81 | 15.14 | 18.04 |
| Climate Type | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 | T1 |
| Technical Specification | 350m3 | 500m3 | 800m3 | 1000m3 | 1500m3 | 2000m3 |
|---|---|---|---|---|---|---|
| Model | FHBQGL-D3.5DA-T | FHBQGL-D5DA-T | FHBQGL-D8DA-K | FHBQGL-D10DA-K | FHBQGL-D15DA-K | FHBQGL-D20DA-K |
| Rated Voltage V | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 |
| Rated Frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Power Input kW | 0.155 | 0.250 | 0.44 | 0.54 | 0.88 | 1.06 |
| Phases | 1 | 1 | 1 | 1 | 1 | 1 |
| Current Input A | 1 | 1.6 | 2.69 | 3.27 | 5.38 | 6.63 |
| Air Flow Volume (H/M/L) m³/h | 350/250/1509 | 500/400/200 | 800/470/360 | 1000/590/380 | 1500/980/700 | 2000/1200/850 |
| Temperature Exchange Efficiency | 75% | 73% | 73% | 73% | 73% | 73% |
| Outdoor Static Pressure Pa | 100 | 100 | 100 | 100 | 100 | 100 |
| Sound Power Level (H) dB | 55 | 57 | 66 | 67 | 71 | 71.5 |
| Net Weight Kg | 60 | 71.5 | 82.5 | 90.5 | 196 | 214.5 |
| Heat Recovery | YES | YES | YES | YES | YES | YES |
| Displace Fresh Air | YES | YES | YES | YES | YES | YES |
| Supply Fresh Air | YES | YES | YES | YES | YES | YES |
| Eject Dirt Fan | YES | YES | YES | YES | YES | YES |
| Outline Dimension (WxDxH) mm | 1200x785x240 | 1385x785x240 | 1230x910x384 | 1230x1160x384 | 1230x921x835 | 1230x1171x835 |

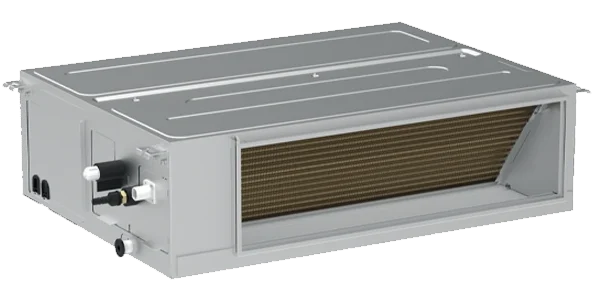

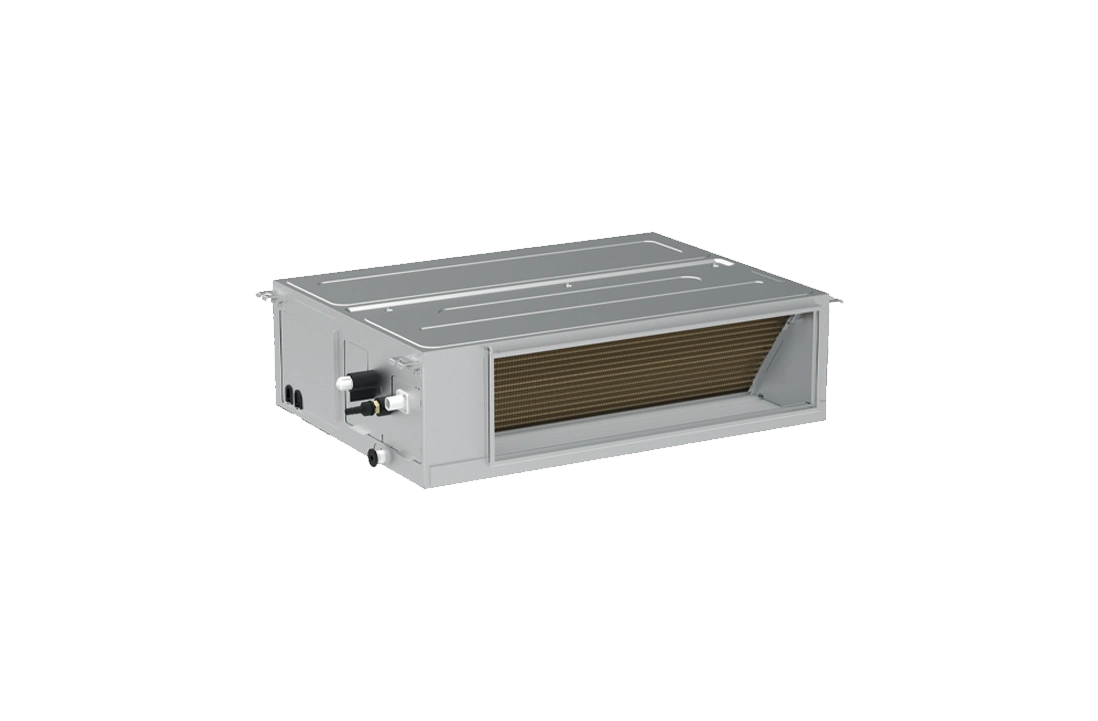

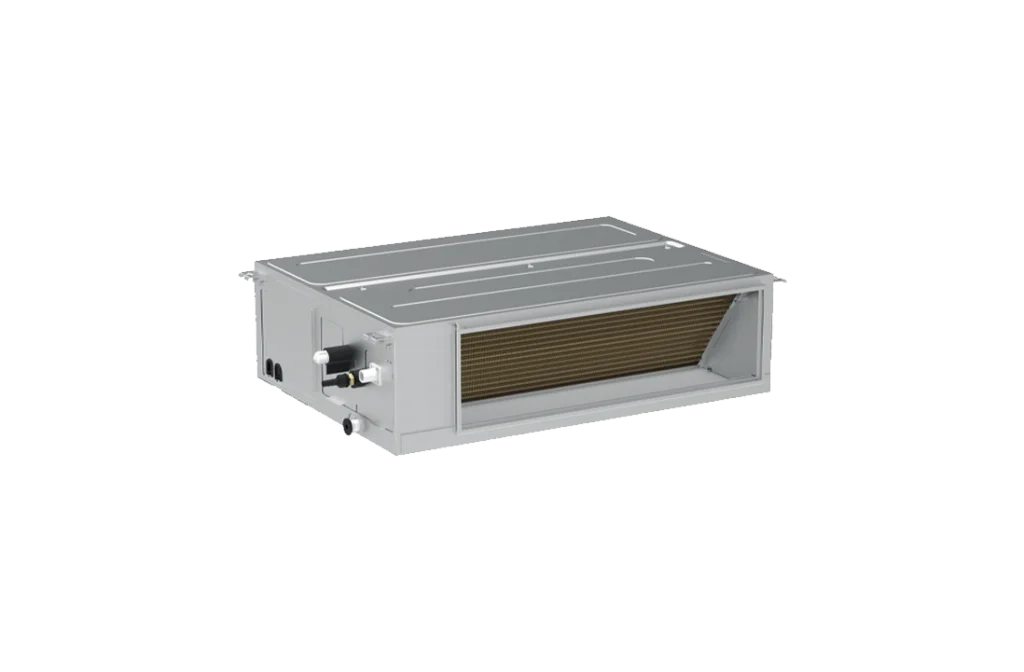

Compact and concealed, ideal for residential and light commercial applications.
Designed for large commercial spaces, delivering powerful airflow through extended duct networks
Wall-mounted indoor units, providing heating and cooling solutions and flexible installation

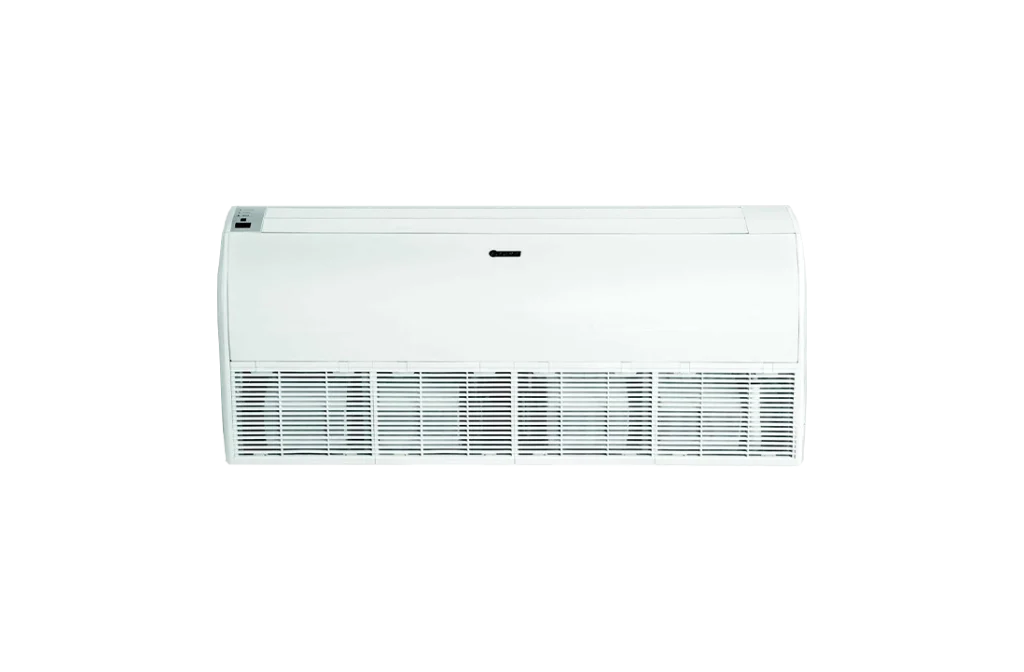

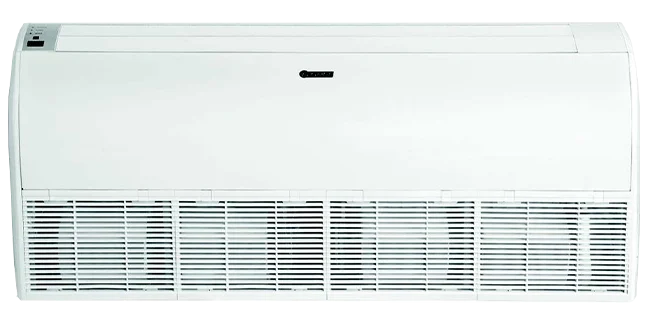

Versatile installation on the floor or ceiling, delivering uniform air distribution

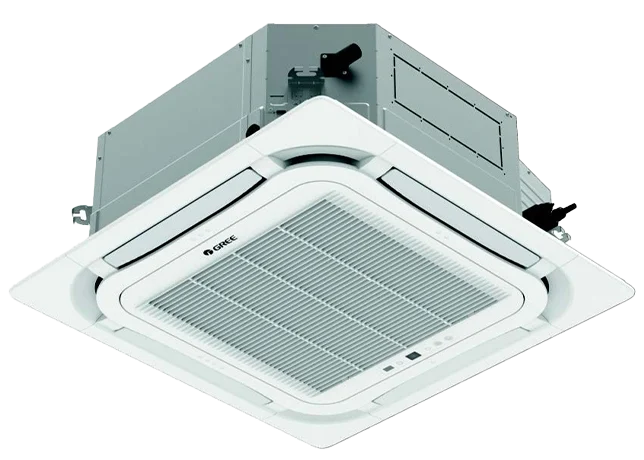

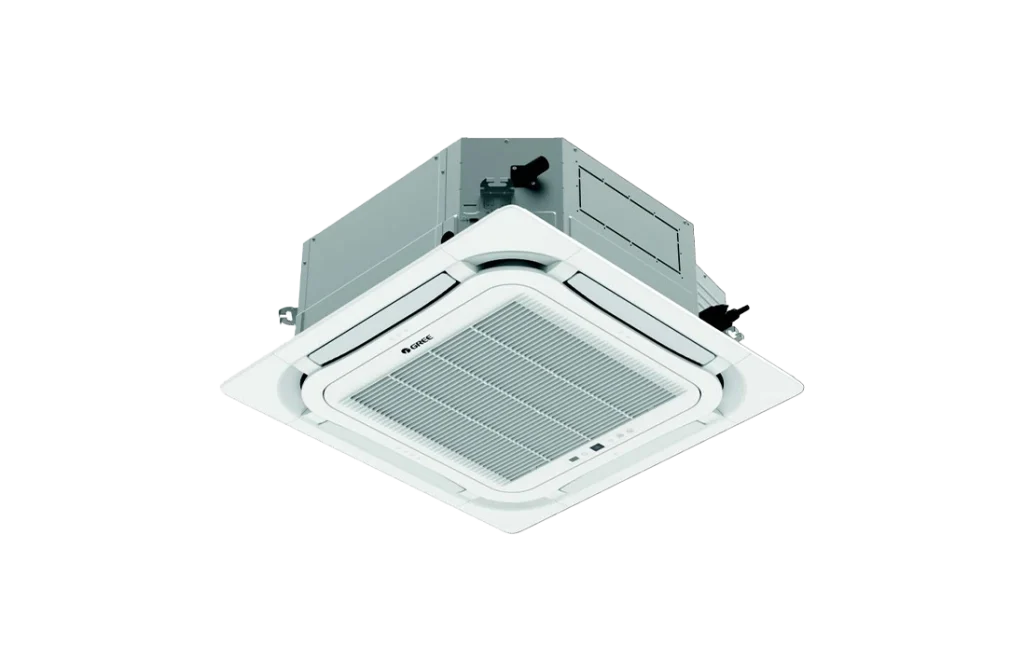

Ceiling-mounted cassette unit with 360° air distribution, ensuring even temperature control in larger spaces.
| Technical Specification | 2.8kW | 3.6kW | 4.5kW | 5.6kW | 7.1kW |
|---|---|---|---|---|---|
| Model | GMV-ND28PLS/K-T | GMV-ND36PLS/K-T | GMV-ND45PLS/K-T | GMV-ND56PLS/K-T | GMV-ND71PLS/K-T |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 955010920 | 1228013650 | 1535017060 | 1911021500 | 2423027300 |
| Indoor Unit Dimensions (W/H/D) mm | 540x198x462 | 700x198x462 | 900x198x462 | 900x198x462 | 1200x198x462 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4"-3/8" | 1/4"-1/2" | 1/4"-1/2" | 3/8"-5/8" | 3/8"-5/8" |
| Net Weight (Main Body) Kg | 13 | 15 | 19 | 19 | 22 |
| Cooling Power Input (kW) | 0.035 | 0.035 | 0.05 | 0.065 | 0.105 |
| Air Flow Volume (H/M/L) m³/h | 450/360/250 | 550/430/280 | 750/570/350 | 850/630/360 | 1200/850/530 |
| Sound Pressure Level (H/M/L) dB | 29/26/24 | 30/27/25 | 33/31/27 | 35/31/27 | 38/34/30 |
| Static Pressure | Low | Low | Low | Low | Low |
| Technical Specification | 5.6kW | 7.1kW | 9kW | 11.2kW | 14kW |
|---|---|---|---|---|---|
| Model | GMV-ND56PHS/D-T | GMV-ND71PHS/D-T | GMV-ND90PHS/D-T | GMV-ND112PHS/D-T | GMV-ND140PHS/D-T |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1911021500 | 2423027300 | 3071034120 | 3821042650 | 4777054590 |
| Indoor Unit Dimensions (W/H/D) mm | 1000x300x700 | 1000x300x700 | 1400x300x700 | 1400x300x700 | 1400x300x700 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" |
| Net Weight (Main Body) Kg | 40.5 | 41 | 54 | 54 | 54.5 |
| Cooling Power Input (kW) | 0.105 | 0.11 | 0.17 | 0.17 | 0.24 |
| Air Flow Volume (H/M/L) m³/h | 1000/800/700 | 1250/1050/950 | 1800/1450/1250 | 2000/1600/1400 | 2350/1900/1650 |
| Sound Pressure Level (H/M/L) dB | 40/36/32 | 40/36/32 | 42/38/34 | 43/39/36 | 44/41/38 |
| Static Pressure | High | High | High | High | High |
| Technical Specification | 2.8kW | 3.6kW | 4.5kW | 5.6kW | 7.1kW |
|---|---|---|---|---|---|
| Model | GMV-ND28G/A1C-T | GMV-ND36G/A1C-T | GMV-ND45G/A1C-T | GMV-ND56G/A1C-T | GMV-ND71G/A1C-T |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 955010920 | 1228013650 | 1535017060 | 1911021500 | 2423025590 |
| Indoor Unit Dimensions (W/H/D) mm | 867x276x206 | 978x333x248 | 978x333x248 | 1116x333x248 | 1116x333x248 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4"-3/8" | 1/4"-1/2" | 1/4"-1/2" | 3/8"-5/8" | 3/8"-5/8" |
| Net Weight (Main Body) Kg | 9.5 | 13 | 13 | 15.5 | 15.5 |
| Cooling Power Input (kW) | 0.025 | 0.027 | 0.035 | 0.06 | 0.06 |
| Air Flow Volume (H) m³/h | 450 | 630 | 650 | 900 | 900 |
| Sound Pressure Level (H/M/L) dB | 37/35/31 | 38/36/33 | 42/39/34 | 44/42/38 | 44/42/38 |
| Technical Specification | 3.6kW | 5kW | 5.6kW | 12.5kW | 16kW |
|---|---|---|---|---|---|
| Model | GMV-ND36ZD/B-T | GMV-ND50ZD/B-T | GMV-ND56ZD/B-T | GMV-ND125ZD/B-T | GMV-ND160ZD/B-T |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1228013650 | 1706019110 | 1911021500 | 4265047770 | 5459061420 |
| Indoor Unit Dimensions (W/H/D) mm | 870x235x665 | 870x235x665 | 870x235x665 | 1570x235x665 | 1570x235x665 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4"-1/2" | 1/4"-1/2" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-3/4" |
| Net Weight (Main Body) Kg | 24 | 25 | 25 | 41 | 43 |
| Cooling Power Input (kW) | 0.035 | 0.055 | 0.055 | 0.12 | 0.175 |
| Air Flow Volume (H/M/L) m³/h | 600/500/450 | 750/650/600 | 750/650/600 | 1800/1600/1400 | 2150/1850/1650 |
| Sound Pressure Level (H/M/L) dB | 36/32/29 | 42/39/36 | 42/39/36 | 47/44/42 | 52/48/45 |
| Technical Specification | 2.8kW | 3.6kW | 3.6kW | 4.5kW | 4.5kW | 5.6kW | 5.6kW | 7.1kW | 9.0kW | 11.2kW | 12.5kW | 14.0kW |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | GMV-ND28T/D1-T | GMV-ND36T/D1-T | GMV-ND36T/E-T | GMV-ND45T/D1-T | GMV-ND45T/E-T | GMV-ND56T/D1-T | GMV-ND56T/E-T | GMV-ND71T/D1-T | GMV-ND90T/D1-T | GMV-ND112T/D1-T | GMV-ND125T/D1-T | GMV-ND140T/D1-T |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 955010920 | 1228013650 | 1228013650 | 1535017060 | 1535017060 | 1911021500 | 1911021500 | 2423027300 | 3071034120 | 3821042650 | 4265047770 | 4778054590 |
| Indoor Unit Dimensions (W/H/D) mm | 840x200x840 | 840x200x840 | 570x265x570 | 840x200x840 | 570x265x570 | 840x200x840 | 570x265x570 | 840x200x840 | 840x240x840 | 840x240x840 | 840x290x840 | 840x290x840 |
| Panel Dimensions (W/H/D) mm | 950x65x950 | 950x65x950 | 620x47.5x620 | 950x65x950 | 620x47.5x620 | 950x65x950 | 620x47.5x620 | 950x65x950 | 950x65x950 | 950x65x950 | 950x65x950 | 950x65x950 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4"-3/8" | 1/4"-1/2" | 1/4"-1/2" | 1/4"-1/2" | 1/4"-1/2" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" | 3/8"-5/8" |
| Net Weight (Main Body) Kg | 19 | 19 | 17.5 | 19 | 17.5 | 21 | 17.5 | 21 | 22.5 | 22.5 | 25 | 25 |
| Net Weight (Main Panel) Kg | 6 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 6 | 6 | 6 | 6 |
| Cooling Power Input (kW) | 0.04 | 0.04 | 0.03 | 0.05 | 0.045 | 0.06 | 0.045 | 0.06 | 0.075 | 0.1 | 0.16 | 0.16 |
| Air Flow Volume (H/M/L) m³/h | 800/700/600 | 800/700/600 | 620/550/480 | 900/800/700 | 730/650/560 | 1100/935/850 | 730/650/560 | 1100/935/850 | 1400/1000/900 | 1550/1200/1000 | 1800/1450/1150 | 1800/1450/1150 |
| Sound Pressure Level (H/M/L) dB | 32/29/27 | 32/29/27 | 39/37/35 | 35/30/27 | 43/41/39 | 37/35/32 | 43/41/39 | 37/35/32 | 40/36/31 | 43/39/35 | 46/41/35 | 46/41/35 |

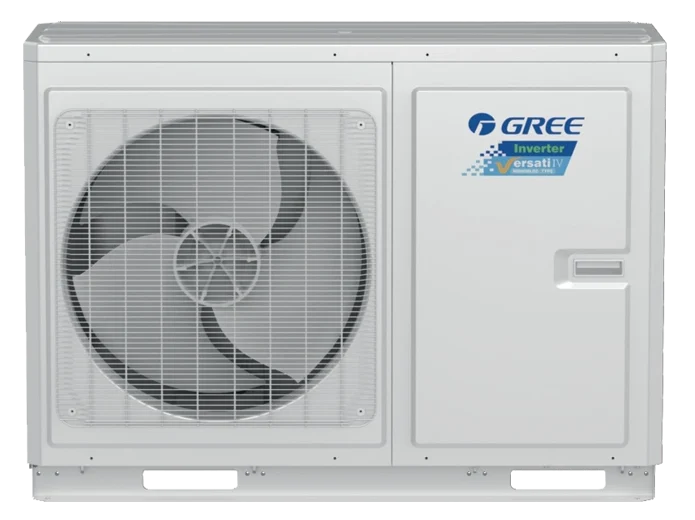

Heat Pumps are an all-in-one solution for heating and domestic hot water. Designed for residential and commercial applications, they deliver year-round comfort with high energy efficiency, lower operating costs, reliable performance, and environmentally friendly operation
All-in-One Heat Pump
Next Generation System
| Technical Specification | 6kW | 8kW | 10kW | 10kW | 10kW | 12kW | 12kW | 14kW | 14kW | 16kW | 16kW |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | GRS-CQ6.0Pd/NhG4-E | GRS-CQ8.0Pd/NhG4-E | GRS-CQ10Pd/NhG-M | GRS-CQ10Pd/NhG4-M | GRS CQ10Pd/NhG4-E | GRS-CQ12Pd/NhG3-M | GRS-CQ12Pd/NhG4-M | GRS-CQ14Pd/NhG4-M | GRS-CQ14Pd/NhG3-M | GRS-CQ16Pd/NhG3-M | GRS-CQ16Pd/NhG4-M |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Electrical Phase | 1 | 1 | 3 | 3 | 1 | 3 | 3 | 3 | 3 | 3 | 3 |
| Heating Power Input (Floor Heating) kW | 1.1 | 1.5 | 2.1 | 2.1 | 2 | 2.5 | 2.5 | 3.1 | 3.1 | 3.6 | 3.6 |
| Heating Operating Range Outdoor Temperature (DB) ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ |
| Water Heating Operating Range Outdoor Temperature (DB) ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ |
| Outflow Water Temperature (Heating to Floor) ℃ | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Hot Water Output Temperature ℃ | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 | +20 to +65 |
| Dimension of Outline (WxHxD) mm | 1150x735x365 | 1206x878x445 | 1206x878x446 | 1206x878x447 | 1206x878x448 | 1206x878x449 | 1206x878x450 | 1206x878x451 | 1206x878x452 | 1206x878x453 | 1206x878x454 |
| Application Area (approximate) m² | 35–60 | 50–80 | 70-100 | 70-100 | 70-100 | 90-120 | 90-120 | 110-150 | 110-150 | 120-170 | 120-170 |
| COP Floor Heating (W/W) | 5.4 | 5.32 | 4.95 | 4.95 | 5.05 | 4.82 | 4.82 | 4.6 | 4.6 | 4.4 | 4.4 |
| Daily Electricity consumption kWh | 6.24 | 6.51 | 6.51 | 6.51 | 6.51 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Net Weight Kgs | 90 | 120 | 134 | 134 | 120 | 144 | 144 | 144 | 144 | 144 | 144 |
| WiFi | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Heating + Water Heating | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Holiday Mode | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Technical Specification | 4kW | 8kW | 10kW | 10kW | 12kW | 14kW | 16kW | 16kW |
|---|---|---|---|---|---|---|---|---|
| Model | GRS-CQ4.0Pd/NpG4-E | GRS-CQ8.0Pd/NpG4-E | GRS-CQ10Pd/NpG4-M | GRS-CQ10Pd/NpG4-E | GRS-CQ12Pd/NpG4-M | GRS-CQ14Pd/NpG4-M | GRS-CQ16Pd/NpG4-E | GRS-CQ16Pd/NpG4-M |
| Refrigerant | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 |
| Electrical Phase | 1 | 1 | 3 | 1 | 3 | 3 | 1 | 3 |
| Heating Power Input (Floor Heating) kW | 0.87 | 1.24 | 2.11 | 2.11 | 2.42 | 2.98 | 2.98 | 3.3 |
| Heating Operating Range Outdoor Temperature (DB) ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ | -25℃ to +35 ℃ |
| Water Heating Operating Range Outdoor Temperature (DB) ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ | -25 ℃ to +45 ℃ |
| Hot Water Output Temperature ℃ | +20 to +80 | +20 to +80 | +20 to +80 | +20 to +80 | +20 to +80 | +20 to +80 | +20 to +80 | +20 to +80 |
| Dimension of Outline (WxHxD) mm | 1206x445x880 | 1206x445x880 | 1206x445x880 | 1206x445x880 | 1206x445x880 | 1206x445x880 | 943x464x1615 | 943x464x1615 |
| Net Weight Kgs | 110 | 124 | 132 | 124 | 146 | 146 | 175 | 179 |
| COP Floor Heating (W/W) | 5.2 | 5 | 4.75 | 4.75 | 4.95 | 4.7 | 4.7 | 4.7 |
| Daily Electricity consumption kWh | 6.247 | 6.796 | 6.789 | 6.796 | 7.136 | 7.136 | 7.136 | 7.136 |
| Application Area (approximate) m² | 20-40 | 50–80 | 70-100 | 70-100 | 90-120 | 110-150 | 120-170 | 120-170 |
| WiFi | YES | YES | YES | YES | YES | YES | YES | YES |
| Heating + Water Heating | YES | YES | YES | YES | YES | YES | YES | YES |
| Holiday Mode | YES | YES | YES | YES | YES | YES | YES | YES |
Light Commercial Systems offer flexible and efficient climate control for small to medium-sized residential and commercial spaces. Free Match and U-Match solutions, combine powerful performance, versatile installation options, and reliable year-round comfort to meet a wide range of application requirements
High-performance outdoor unit built for continuous operation and demanding residential and commercial applications

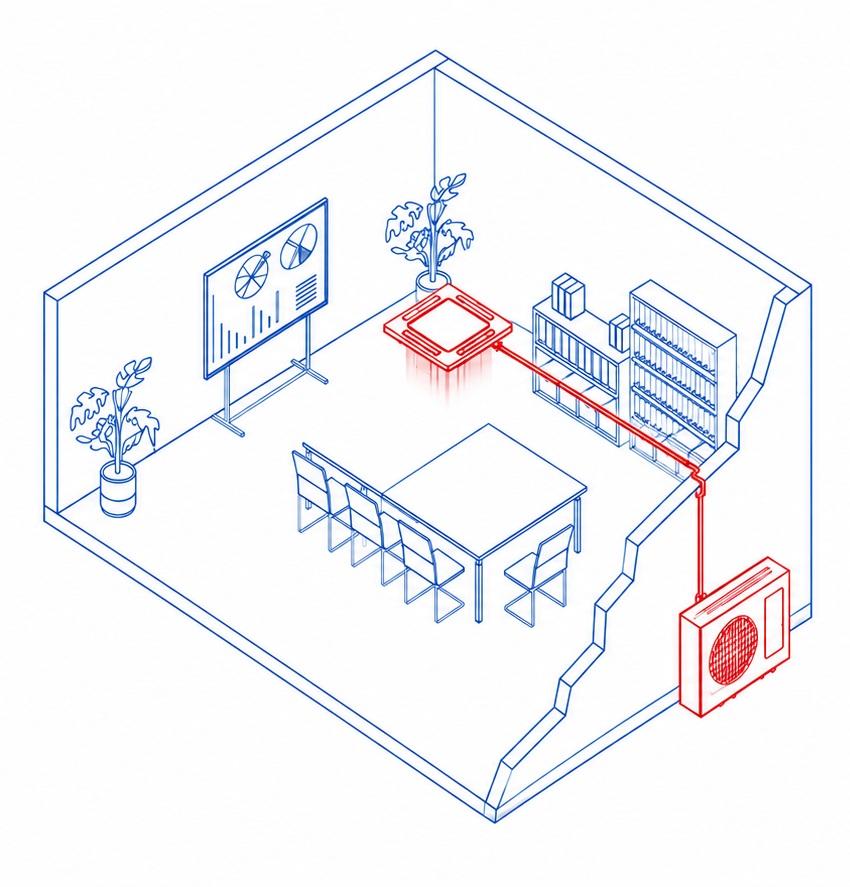

A powerful and reliable commercial single-split air conditioning solution
A powerful and reliable commercial single-split air conditioning solution, designed for high-demand environments requiring strong performance and installation flexibility.
High-performance outdoor unit built for continuous operation and demanding residential and commercial applications
Choose the indoor unit that best suits your space. Select from Cassette, Duct or Floor Ceiling units for the perfect comfort solution.
| Technical Specification | 12000 Btu | 18000 Btu | 18000 Btu | 24000 Btu | 34000 Btu | 43000 Btu |
|---|---|---|---|---|---|---|
| Model | GUD35W1/NhA-S | GFH18KBXD-S6DNK2B/O | GKH18EBXD-S6DNF5B | GFH24ACXF-S6DNE3B/O | GUD100W1/NhA-X | GUD125W1/NhA-X |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1190013700 | 1740019100 | 1808018760 | 2400026600 | 3580039200 | 4120046000 |
| Energy Class | A++A+ | A++A+ | A++A+ | A++A+ | A++A+ | A++A+ |
| Outdoor Unit Dimensions (W/H/D) mm | 675x553x285 | 802x555x350 | 802x555x350 | 958x660x402 | 940x820x370 | 940x820x370 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 |
| Climate Type | T1 | T1 | T1 | T1 | T1 | T1 |
| Application Area m² | 16-24 | 23-34 | 23-34 | 27-42 | 46-70 | 55-85 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-1/2'' | 1/4''-1/2'' | 1/4''-5/8'' | 3/8''-5/8'' | 3/8''-5/8'' |
| Max Distance Height / Length m | 15/30 | 15/30 | 15/30 | 25/30 | 30/75 | 30/75 |
| Cooling Power Input (kW) | 1.03 | 1.5 | 1.58 | 2.16 | 3.1 | 3.58 |
| COP (W/W) | 4 | 3.9 | 3.48 | 3.7 | 3.9 | 3.65 |
| SEER | 6.5 | 6.1 | 7 | 6.7 | 6.6 | 6.1 |
Concealed duct unit for discreet installation and uniform air distribution
Flexible installation on floor or ceiling, offering strong airflow and balanced comfort
Ceiling-mounted cassette unit with 360° air distribution, ensuring even temperature control in larger spaces.
Concealed duct unit for discreet installation and uniform air distribution. Ideal for applications where only the air grilles are visible, providing a clean aesthetic while delivering quiet, efficient climate control throughout the space.
| Technical Specification | 12000 Btu | 18000 Btu | 24000 Btu | 34000 Btu | 43000 Btu |
|---|---|---|---|---|---|
| Model | GUD35PS1/A-S | GFH18KBXD-S6DNK2B/I | GFH24ACXF-S6DNE3B/I | GUD100PHS1/A-S | GUD125PHS1/A-S |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1190013700 | 1740019100 | 2400027300 | 3580039200 | 4120046000 |
| Energy Class | A++A+ | A++A+ | A++A+ | A++A+ | A++A+ |
| Indoor Unit Dimensions (W/H/D) mm | 700x450x200 | 900x450x198 | 900x655x260 | 1340x655x260 | 1340x655x260 |
| Net Weight Kg | 18 | 30 | 29 | 43 | 43 |
| Panel Dimensions (W/H/D) mm | N.A. | N.A. | N.A. | N.A. | N.A. |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Application Area m² | 16-24 | 23-34 | 27-42 | 46-70 | 55-85 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-1/2'' | 1/4''-5/8'' | 3/8''-5/8'' | 3/8''-5/8'' |
| Max Distance Height / Length m | 15/30 | 15/30 | 25/30 | 30/75 | 30/75 |
| Cooling Power Input (kW) | 1.03 | 1.5 | 2.16 | 3 | 3.58 |
| Air Flow Volume (SS/H/M/L) m³/h | 600/550/500/400 | 1050/900/700/650 | 1300/1200/1100/1000 | 1700/1600/1400/1200 | 2000/1800/1600/1400 |
| Sound Pressure Level (SS/H/M/L) dB | -/33/32/30 | 37/34/32/30 | 40/39/38/37 | -/38/37/36 | -/42/41/40 |
| COP (W/W) | 4 | 3.9 | 3.7 | 4.1 | 3.65 |
| SEER | 6.5 | 6.1 | 6.7 | 6.4 | 6.1 |
| WiFi | YES (Optional) | YES | YES | YES (Optional) | YES (Optional) |
| Auto Clean | YES | YES | YES | YES | YES |
| Cold Plasma | NO | NO | YES | YES | YES |
| Self Diagnosis | YES | YES | YES | YES | YES |
Ceiling-mounted cassette unit with 360° air distribution, ensuring even temperature control in larger spaces. Designed for commercial and open-plan environments, it delivers powerful, uniform airflow while blending seamlessly into suspended ceilings.
| Technical Specification | 12000 Btu | 18000 Btu | 24000 Btu | 34000 Btu | 43000 Btu |
|---|---|---|---|---|---|
| Model | GUD35T1/A-S | GKH18EBXD-S6DNF5B/I | GKH24ECXF-S6DNF6B/I | GUD100T1/A-S | GUD125T1/A-S |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1190013600 | 1808018760 | 2400027300 | 3580039200 | 4120046000 |
| Energy Class | A++A+ | A++A+ | A++A+ | A++A+ | A++A+ |
| Indoor Unit Dimensions (W/H/D) mm | 570x570x260 | 570x570x260 | 840x840x200 | 840x840x200 | 840x840x200 |
| Net Weight Kg | 16.5 | 16.5 | 21 | 23 | 23 |
| Panel Dimensions (W/H/D) mm | 620x47.5x620 | 620x47.5x620 | 950x37.4x950 | 950x37.4x950 | 950x37.4x950 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Application Area m² | 16-24 | 23-34 | 27-42 | 46-70 | 55-85 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-1/2'' | 1/4''-5/8'' | 3/8''-5/8'' | 3/8''-5/8'' |
| Max Distance Height / Length m | 15/30 | 15/30 | 25/30 | 30/75 | 30/75 |
| Cooling Power Input (kW) | 0.92 | 1.58 | 2.16 | 3.1 | 3.9 |
| Air Flow Volume (SS/H/M/L) m³/h | 600/550/500/400 | 720/650/600/500 | 1300/1200/1100/900 | 1500/1400/1200/1000 | 1700/1500/1300/1100 |
| Sound Pressure Level (SS/H/M/L) dB | -/35/33/29 | 44/41/39/36 | 46/45/43/40 | -/41/39/38 | -/46/43/39 |
| COP (W/W) | 3.8 | 3.48 | 3.7 | 3.9 | 3.4 |
| SEER | 4 | 7 | 6.7 | 6.6 | 6.1 |
| WiFi | YES (Optional) | YES | YES | YES (Optional) | YES (Optional) |
| Auto Clean | YES | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES | YES |
| Self Diagnosis | YES | YES | YES | YES | YES |
Flexible installation on the floor or ceiling, offering strong airflow and balanced comfort. Its versatile design makes it ideal for spaces where wall installation is not practical, ensuring efficient heating and cooling with wide air coverage.
| Technical Specification | 12000 Btu | 18000 Btu | 24000 Btu |
|---|---|---|---|
| Model | GUD35ZD1/A-S | GTH18CAXD-S6DNA1B/I | GTH24CBXF-S6DNA1B/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1190013600 | 1774019100 | 2400026600 |
| Energy Class | A++A+ | A++A+ | A++A+ |
| Indoor Unit Dimensions (W/H/D) mm | 870x665x235 | 870x665x235 | 1200x665x235 |
| Net Weight Kg | 24 | 25 | 32 |
| Panel Dimensions (W/H/D) mm | N.A. | N.A. | N.A. |
| Refrigerant | R32 | R32 | R32 |
| Application Area m² | 16-24 | 23-34 | 27-42 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-1/2'' | 1/4''-5/8'' |
| Max Distance Height / Length m | 15/30 | 15/30 | 25/30 |
| Cooling Power Input (kW) | 0.92 | 1.5 | 2.16 |
| Air Flow Volume (SS/H/M/L) m³/h | 650/600/500/400 | 1000/900/750/600 | 1200/1100/1000/800 |
| Sound Pressure Level (SS/H/M/L) dB | -/34/31/28 | 45/42/41/38 | 50/49/46/44 |
| COP (W/W) | 4.3 | 3.9 | 3.7 |
| SEER | 7.2 | 6.8 | 6.7 |
| WiFi | YES (Optional) | YES | YES |
| Auto Clean | YES | YES | YES |
| Cold Plasma | YES | NO | YES |
| Self Diagnosis | YES | YES | YES |
A flexible multi-split solution ideal for residential and light commercial use, designed to deliver comfort, efficiency, and adaptability across different spaces. Free Match systems are environmentally friendly and provide the comfort and flexibility your space deserves. By operating with only one outdoor unit, they help save space and significantly reduce noise levels. Each outdoor unit can be connected with up to 5 indoor units of different types, depending on your specific needs.

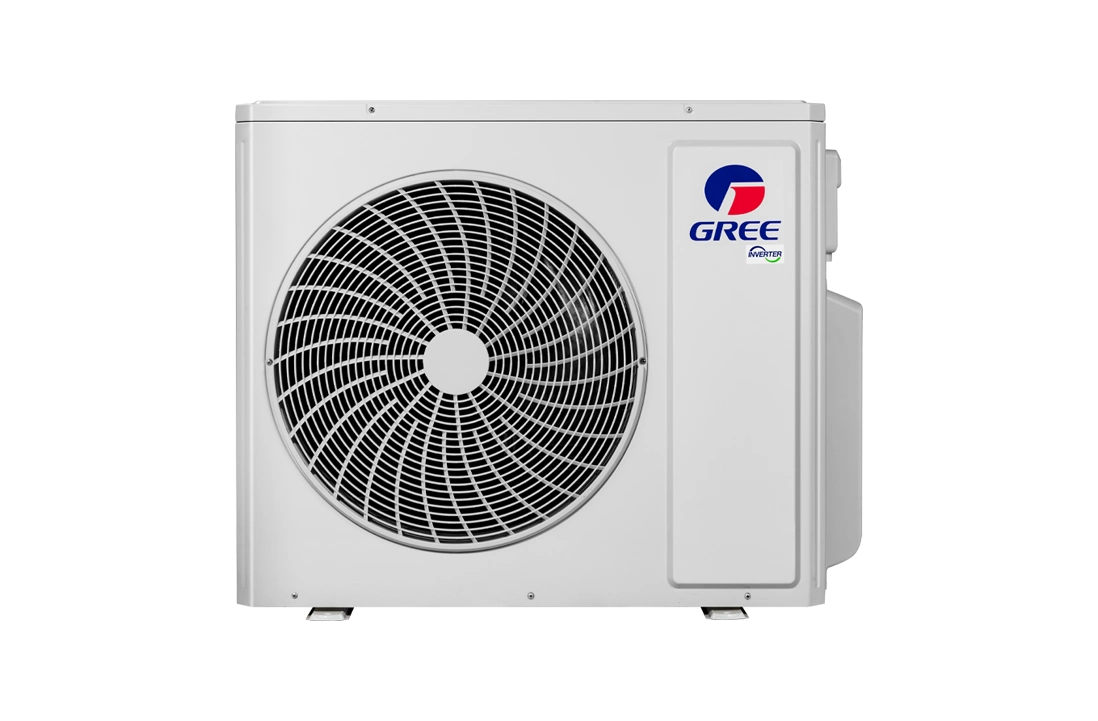

High-performance outdoor unit built for continuous operation and demanding commercial applications
Choose the indoor unit that best suits your space. Select from Wall-Mounted, Cassette, Duct or Floor Ceiling units for the
perfect comfort solution
| Technical Specification | 18000 Btu | 24000 Btu | 28000 Btu | 36000 Btu | 42000 Btu |
|---|---|---|---|---|---|
| Model | GWHD(18)NK6OO | GWHD(24)NK6OO | GWHD(28)NK6OO | GWHD(36)NK6OO | GWHD(42)NK6OO |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 1810019300 | 2420029300 | 2800032400 | 3620040900 | 4130044400 |
| Energy Class | A++A+ | A++A+ | A++A+ | A++A+ | A++A+ |
| Outdoor Unit Dimensions (W/H/D) mm | 822x550x352 | 964x660x402 | 964x660x402 | 1020x826x427 | 1020x826x427 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Climate Type | T1 | T1 | T1 | T1 | T1 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 3/8'' | 1/4'' - 3/8'' | 1/4'' - 3/8'' |
| Max Distance Height / Length m | 10/15 | 15/20 | 15/20 | 25/25 | 25/25 |
| Connection Pipe Total Length m | 40 | 60 | 70 | 80 | 100 |
| Cooling Power Input (kW) | 1.48 | 1.88 | 2.12 | 3 | 3.4 |
| COP (W/W) | 4.52 | 3.86 | 4.32 | 3.95 | 4.08 |
| SEER | 7.2 | 7.1 | 7.2 | 7.2 | 7.2 |
Concealed duct unit for discreet installation and uniform air distribution
Flexible installation on floor or ceiling, offering strong airflow and balanced comfort
Ceiling-mounted cassette unit with 360° air distribution, ensuring even temperature control in larger spaces.
Wall-mounted indoor units, providing heating and cooling solutions and flexible installation
Concealed duct unit for discreet installation and uniform air distribution. Ideal for applications where only the air grilles are visible, providing a clean aesthetic while delivering quiet, efficient climate control throughout the space.
| Technical Specification | 9000 Btu | 12000 Btu | 18000 Btu | 24000 Btu |
|---|---|---|---|---|
| Model | GFH(09)CA-K6DNA1B/I | GFH(12)CA-K6DNA1C/I | GFH(18)CB-K6DNA1C/I | GFH(24)CC-K6DNA1C/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 90009600 | 1200013600 | 1710018800 | 2390023300 |
| Indoor Unit Dimensions (W/H/D) mm | 710x200x450 | 710x200x450 | 1010x200x450 | 1110x347x257 |
| Net Weight Kg | 18.5 | 19 | 25 | 31 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' | 1/4'' - 5/8'' |
| Cooling Power Input (kW) | 0.6 | 0.99 | 1.5 | 2.16 |
| Air Flow Volume (H/M/L) m³/h | 670/610/550 | 540/420/300 | 720/610/420 | 1200/1000/900 |
| Sound Pressure Level (H/M/L) dB | 39/37/35 | 34/31/27 | 31/28/25 | 42/40/36 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | NO | NO | NO | NO |
| Cold Plasma | NO | NO | NO | NO |
| Self Diagnosis | YES | YES | YES | YES |
Designed for commercial and open-plan environments, it delivers powerful, uniform airflow while blending seamlessly into suspended ceilings
| Technical Specification | 24000 Btu |
|---|---|
| Model | GKH(18)EB-K6DNA5A/I |
| Function | CoolingHeating |
| Capacity Btu/h | 1710018800 |
| Indoor Unit Dimensions (W/H/D) mm | 570x265x570 |
| Net Weight Kg | 17 |
| Refrigerant | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4'' - 1/2'' |
| Cooling Power Input (kW) | 2.16 |
| Air Flow Volume (H/M/L) m³/h | 540/490/450 |
| Sound Pressure Level (H/M/L) dB | 39/34/30 |
| WiFi | YES |
| Auto Clean | NO |
| Cold Plasma | NO |
| Self Diagnosis | YES |
Flexible installation on the floor or ceiling, offering strong airflow and balanced comfort. Its versatile design makes it ideal for spaces where wall installation is not practical, ensuring efficient heating and cooling with wide air coverage
| Technical Specification | 24000 Btu |
|---|---|
| Model | GTH(24)CB-K6DNA2A/I |
| Function | CoolingHeating |
| Capacity Btu/h | 2422527296 |
| Indoor Unit Dimensions (W/H/D) mm | 1200x665x235 |
| Net Weight Kg | 33 |
| Refrigerant | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4'' - 1/2'' |
| Cooling Power Input (kW) | 2.16 |
| Air Flow Volume (H/M/L) m³/h | 870/800/720 |
| Sound Pressure Level (H/M/L) dB | 35/31/27 |
| WiFi | YES |
| Auto Clean | NO |
| Cold Plasma | NO |
| Self Diagnosis | YES |

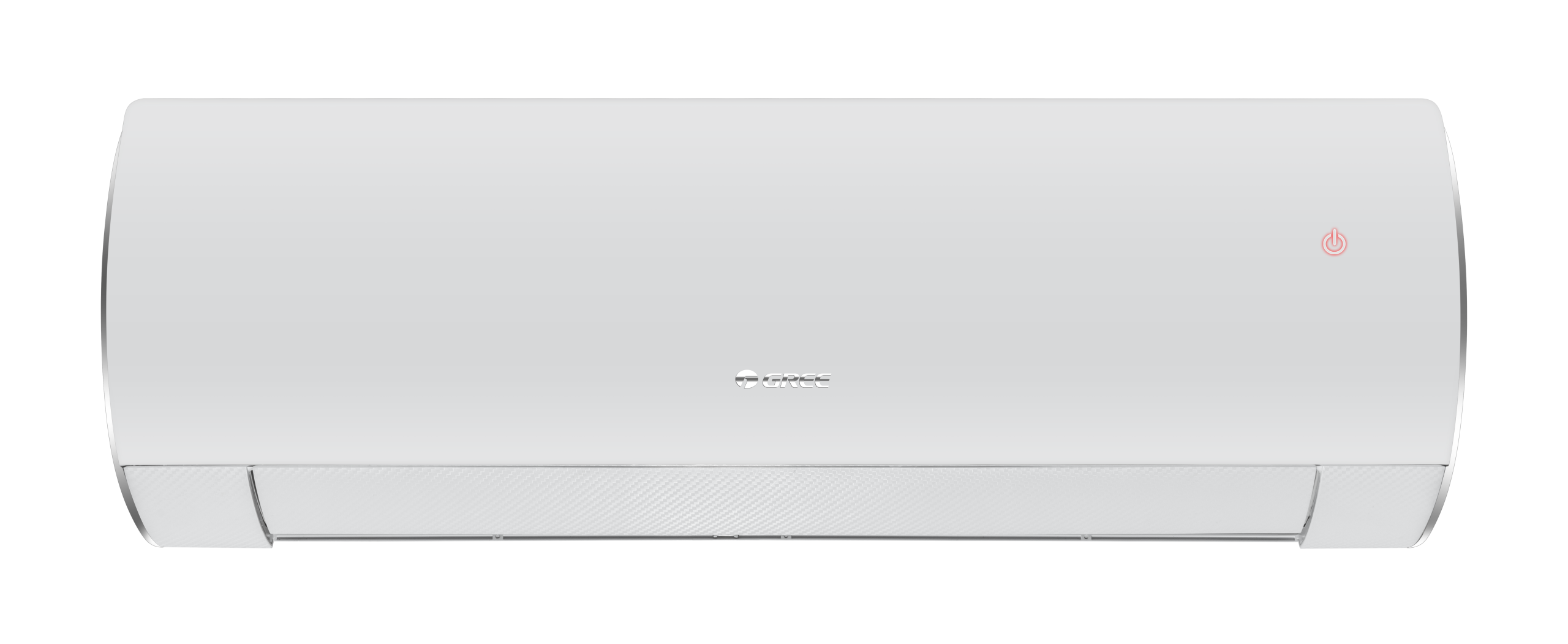

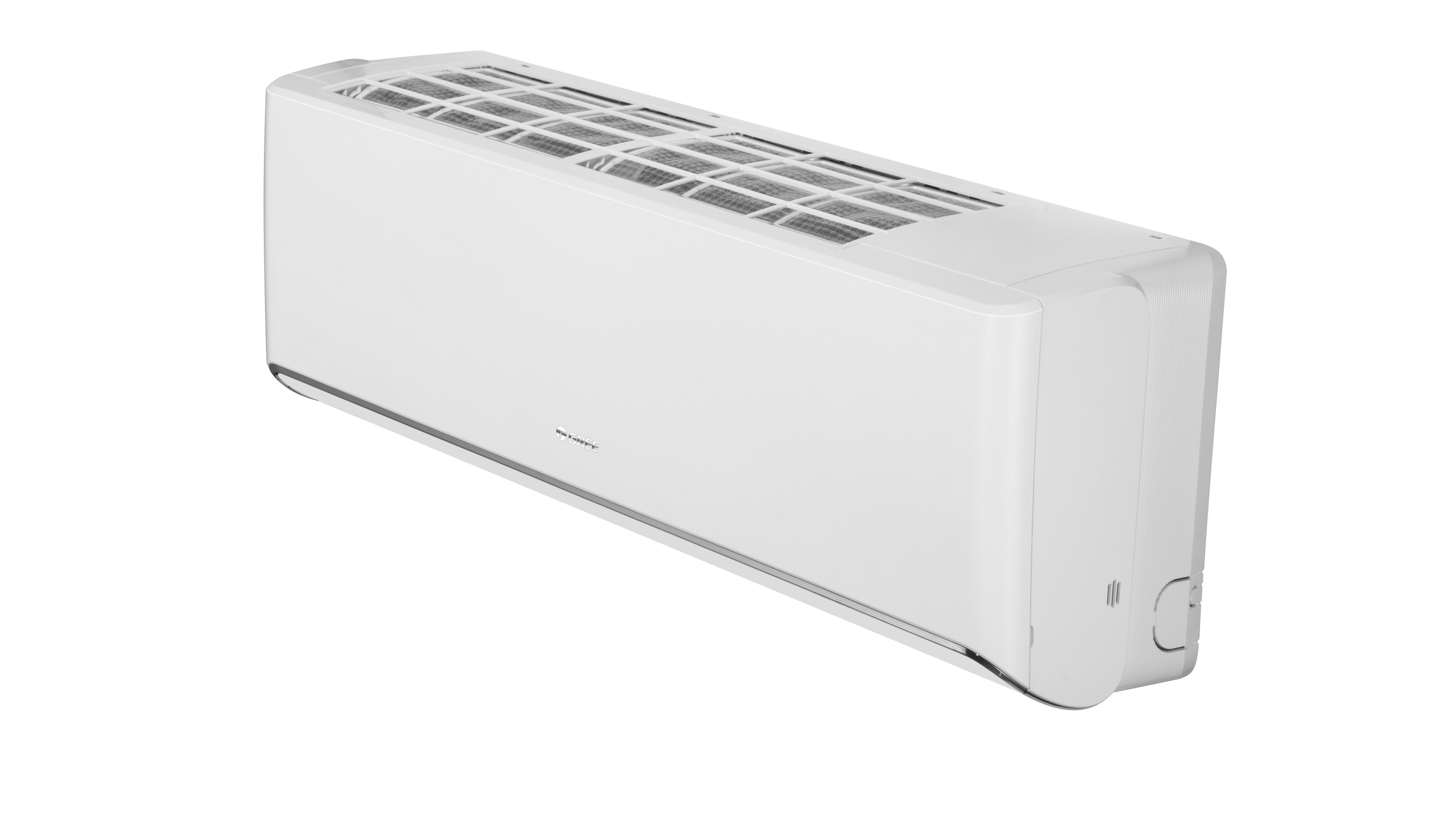

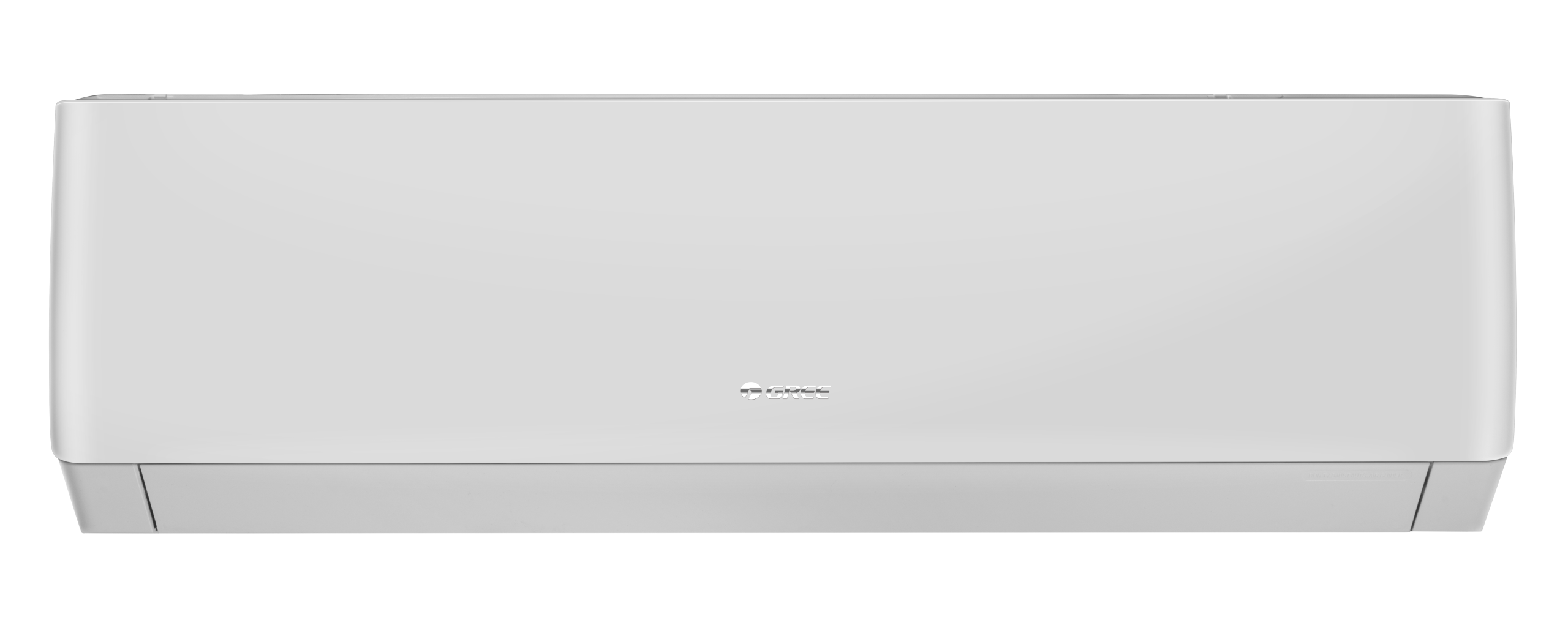

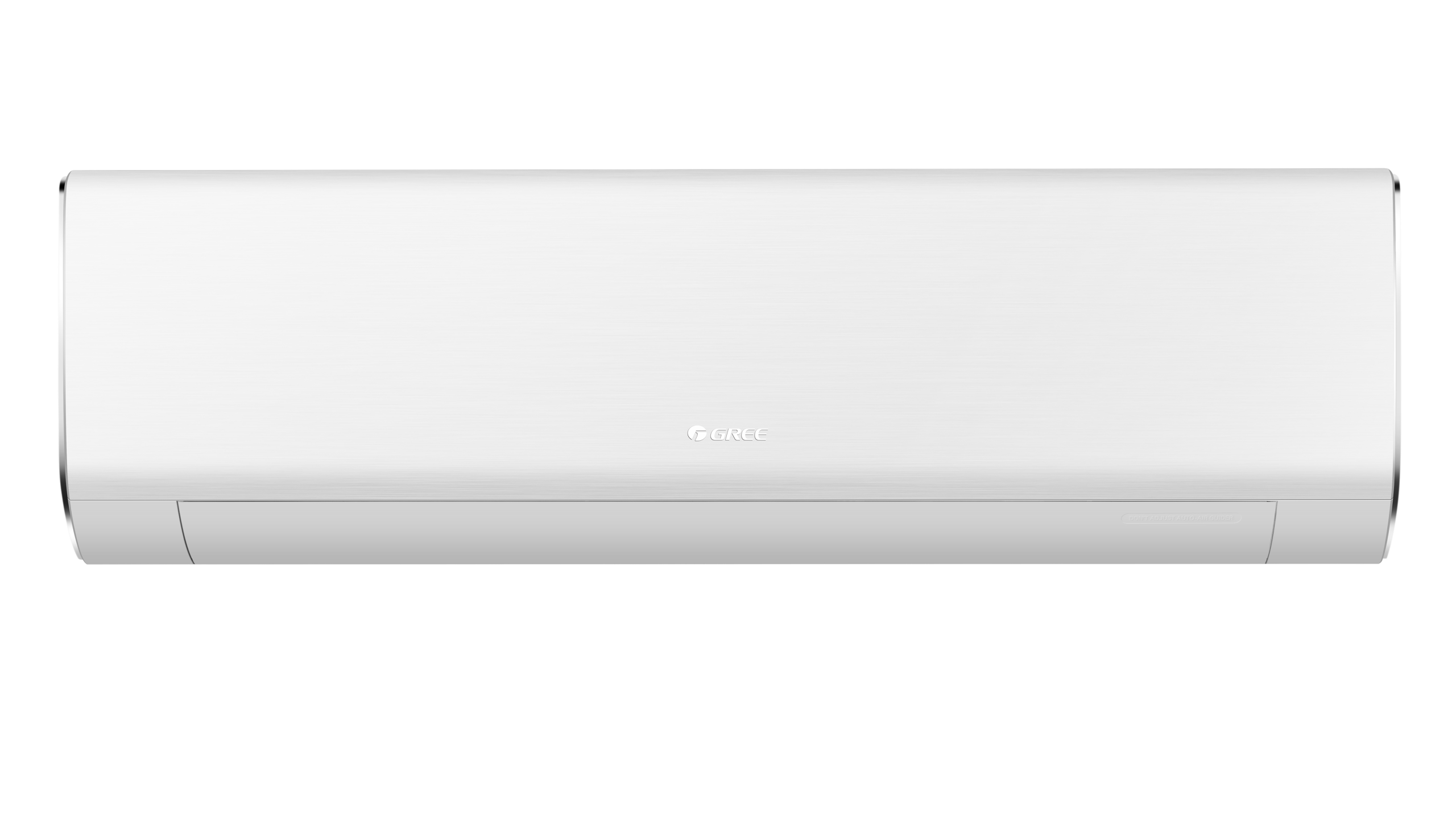

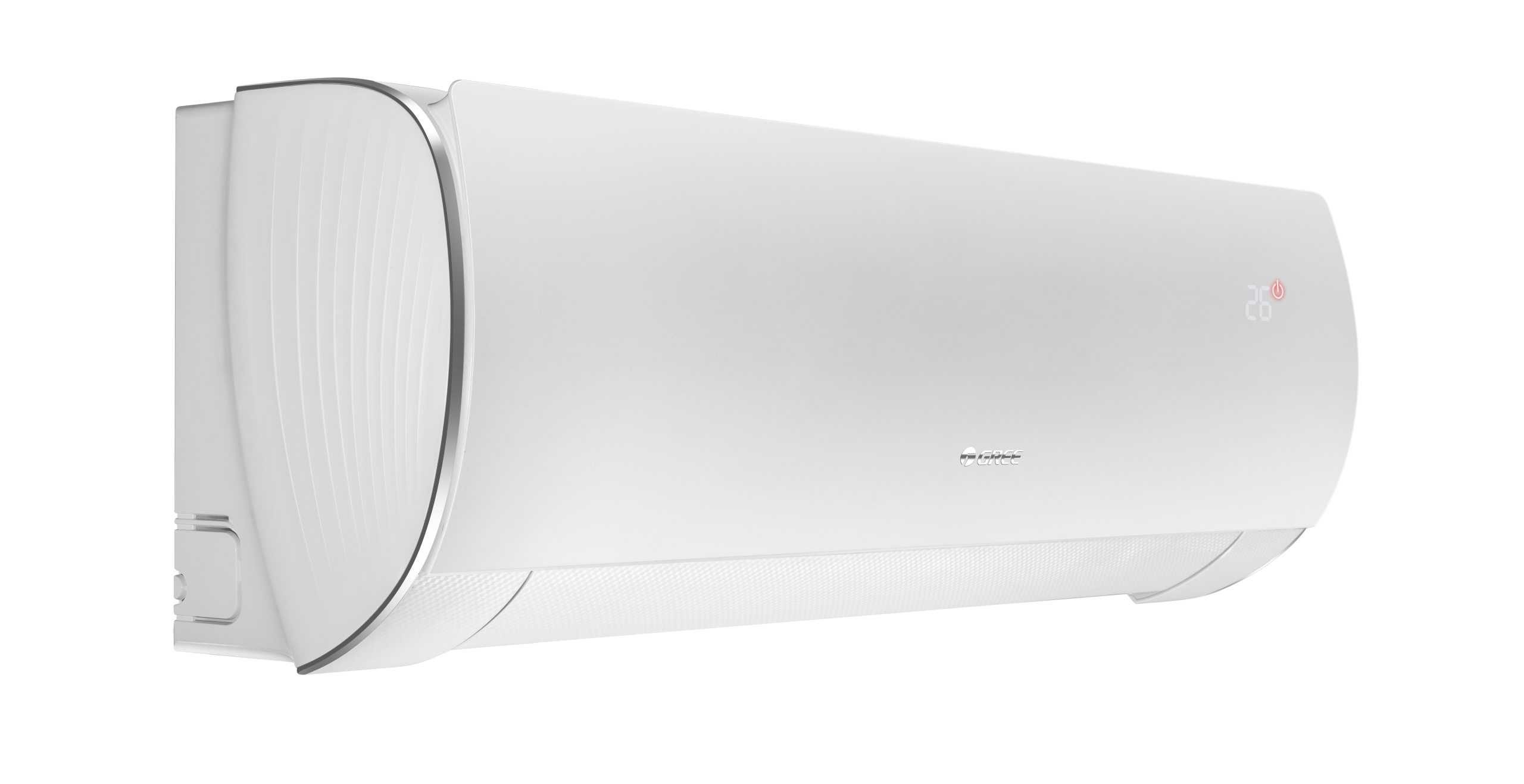

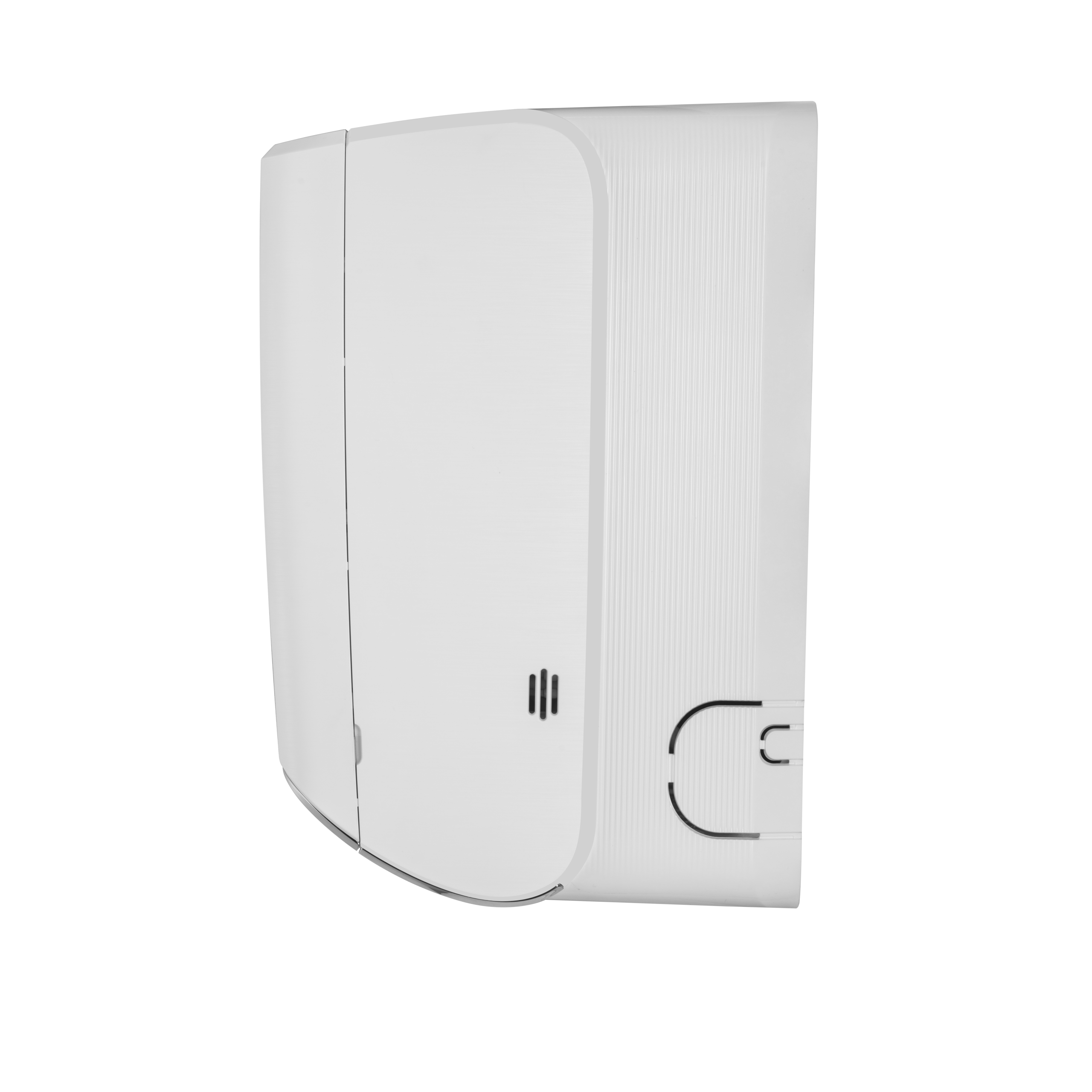

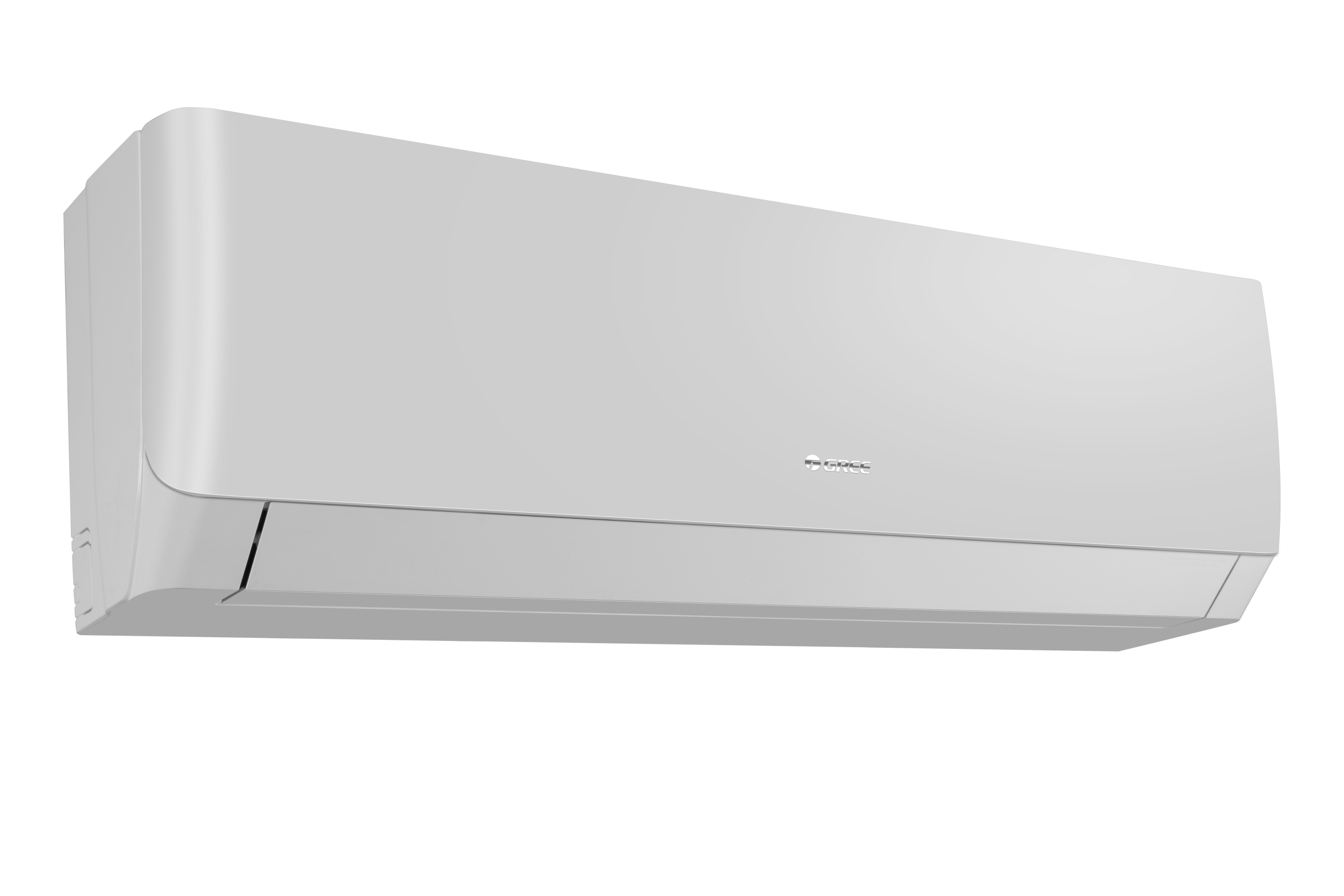

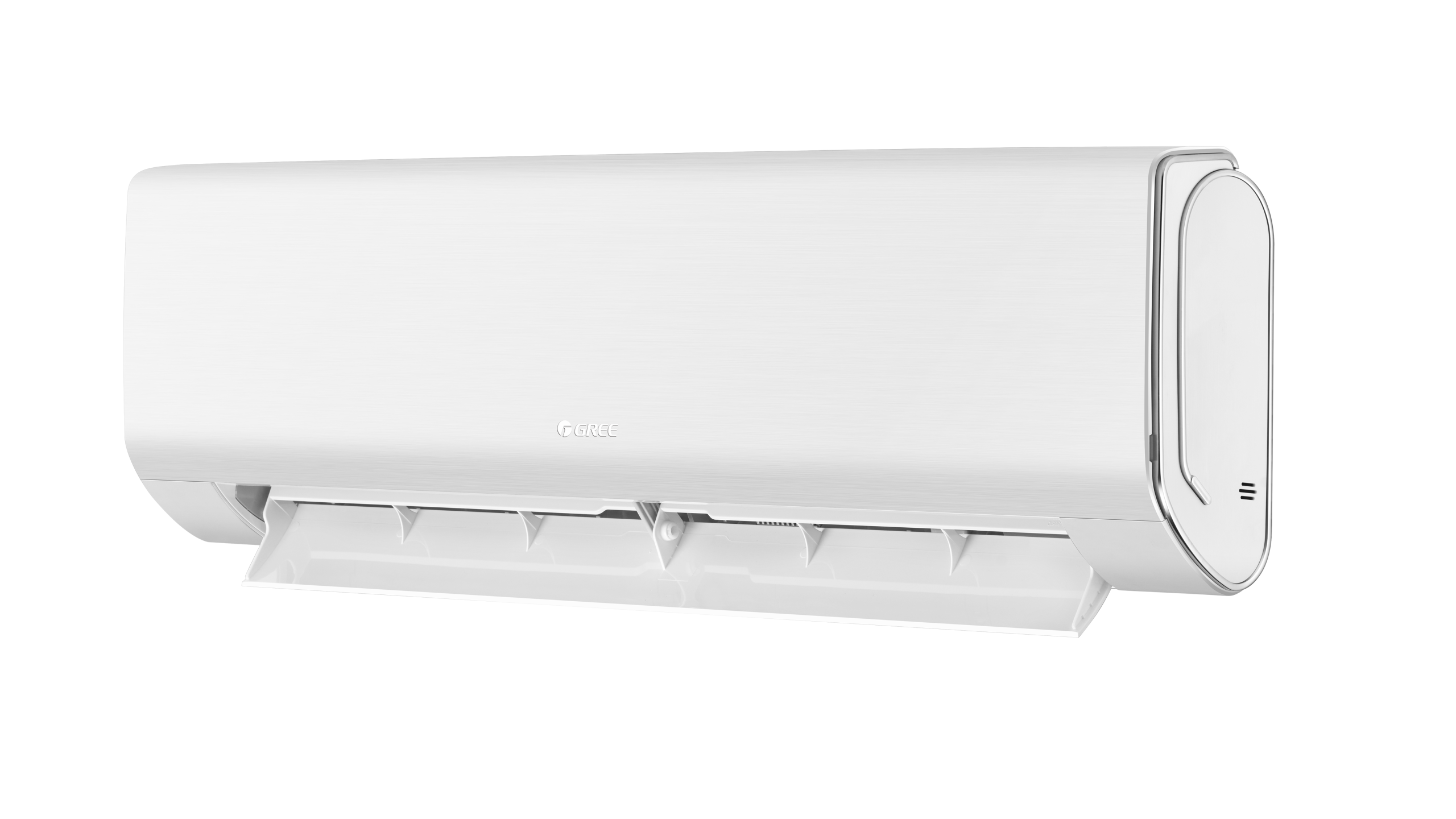

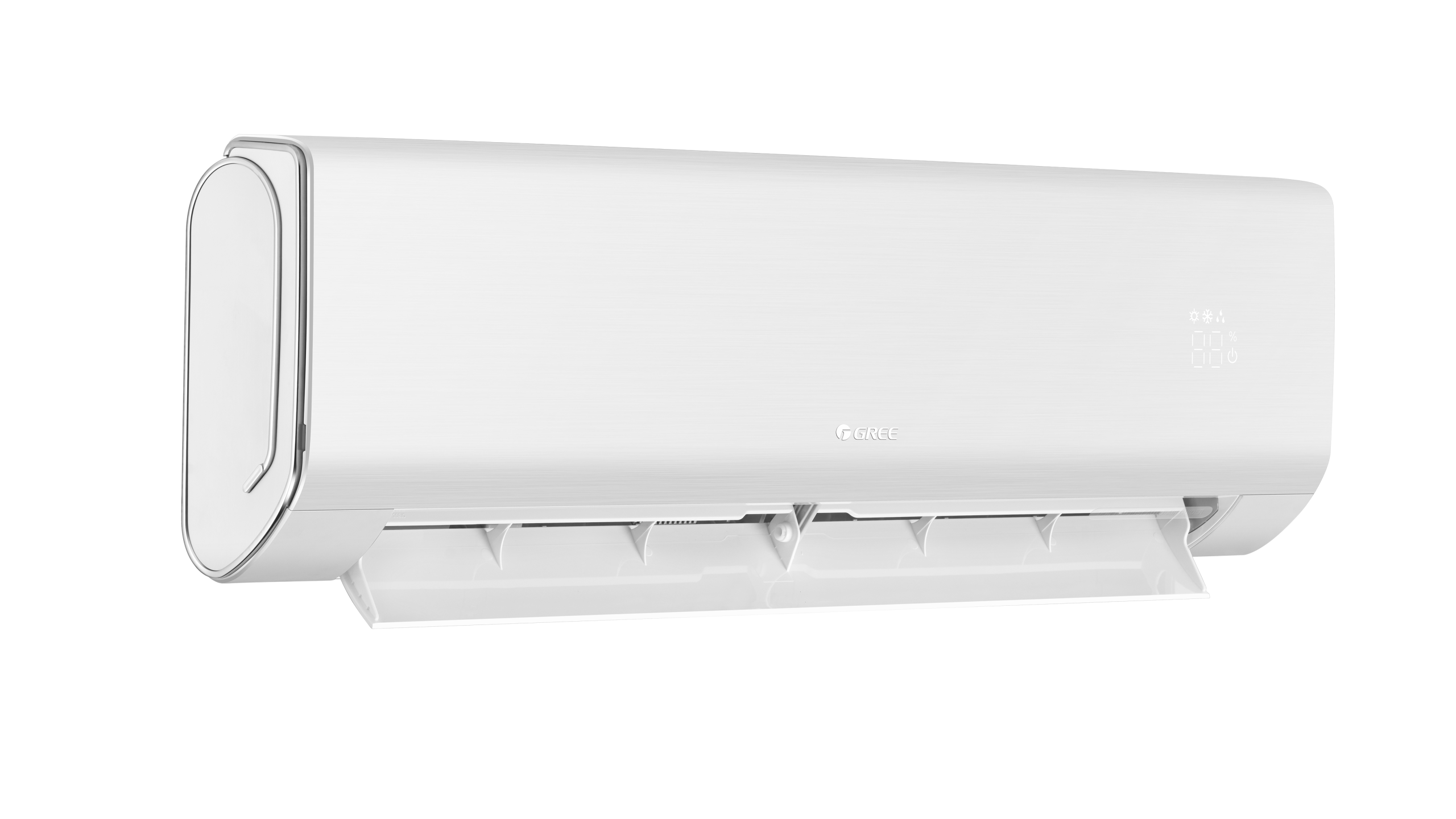

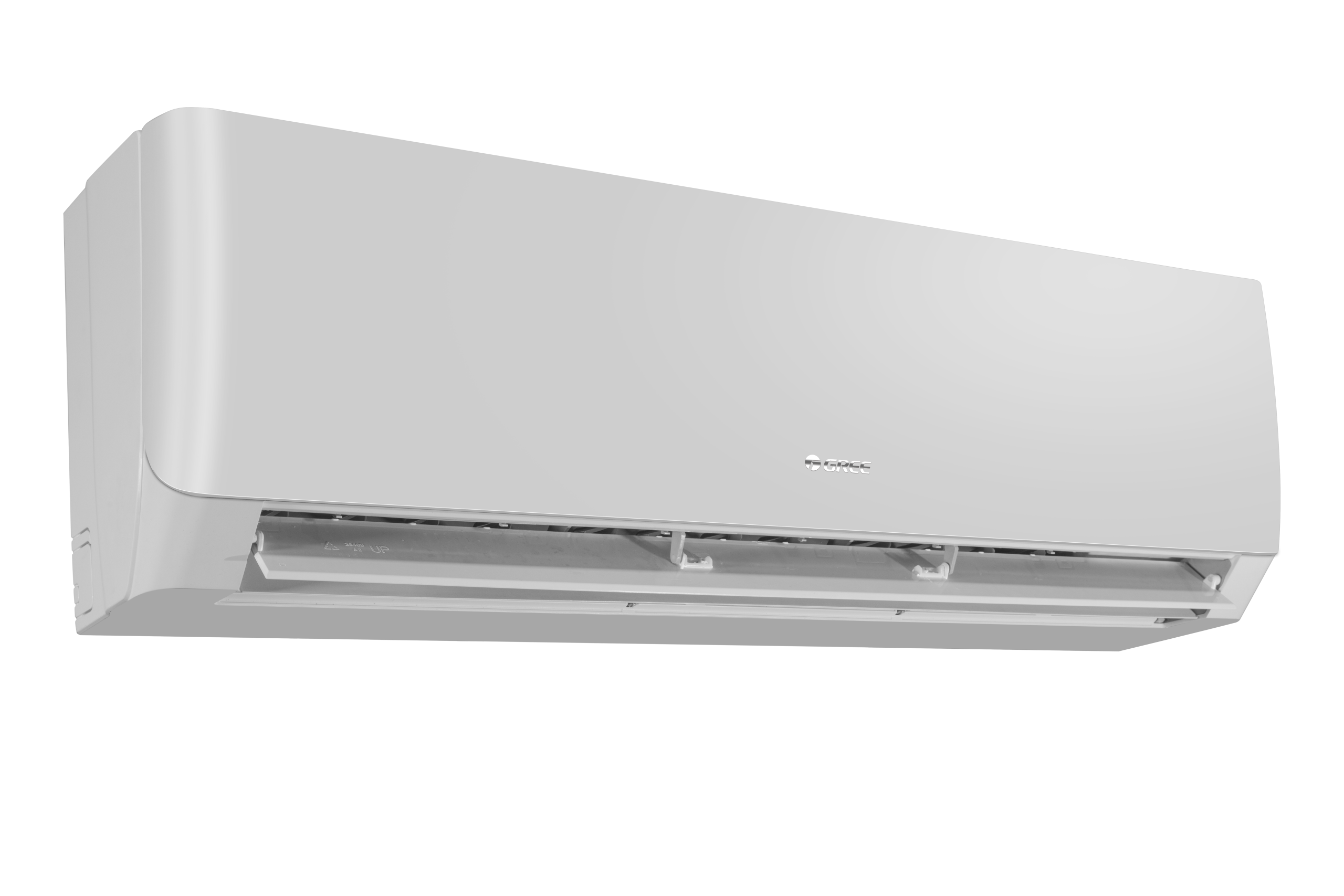

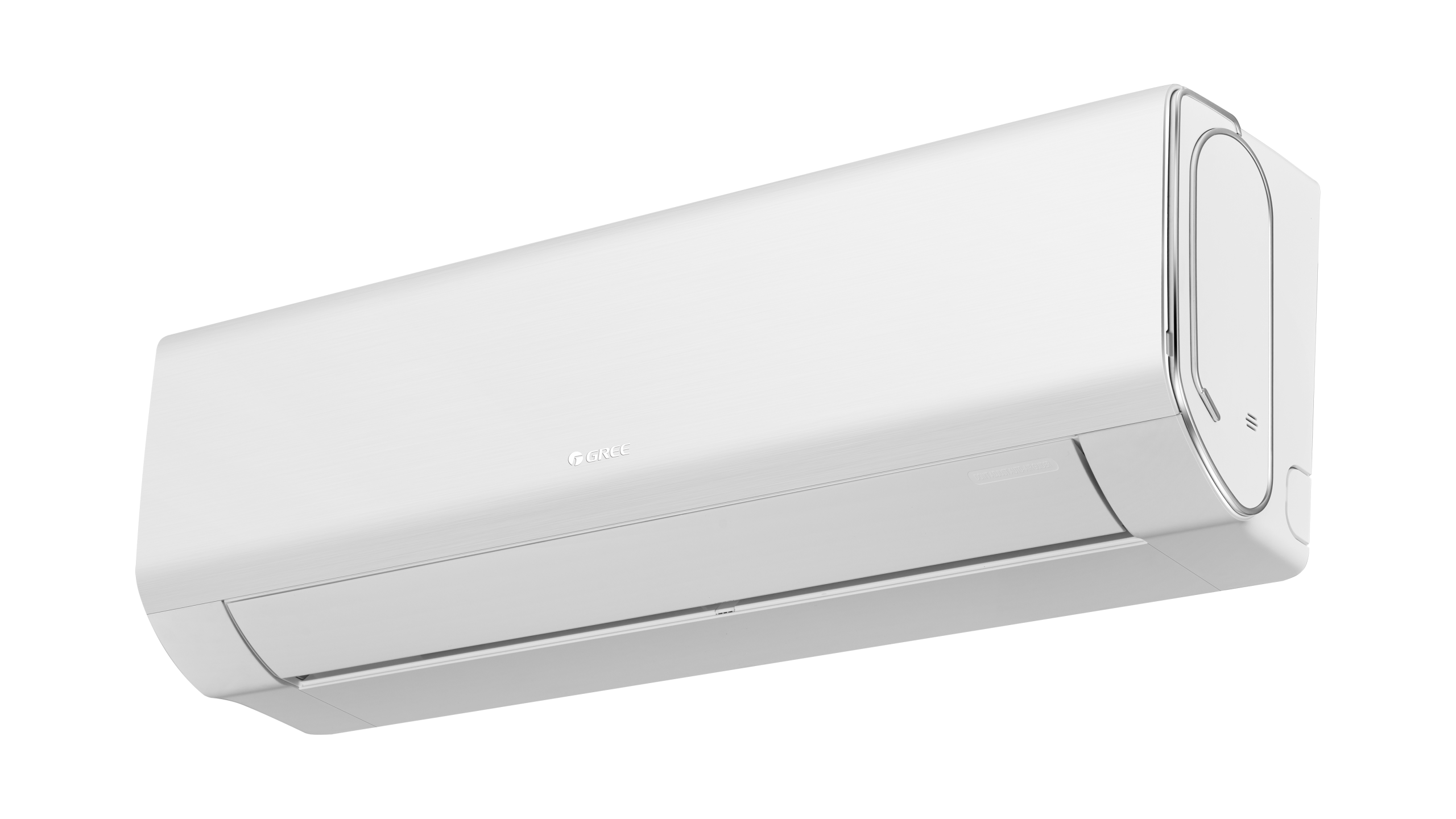

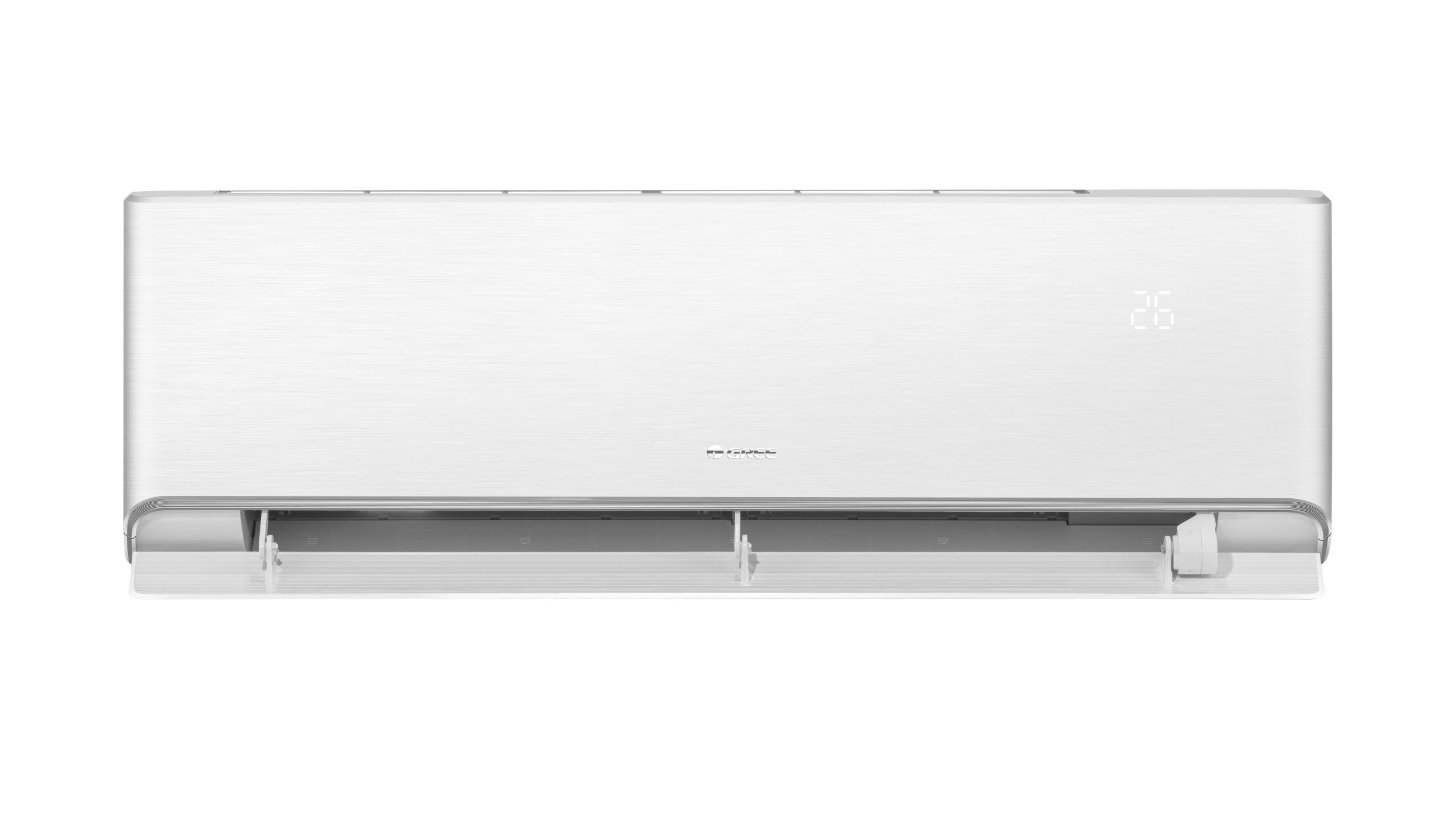

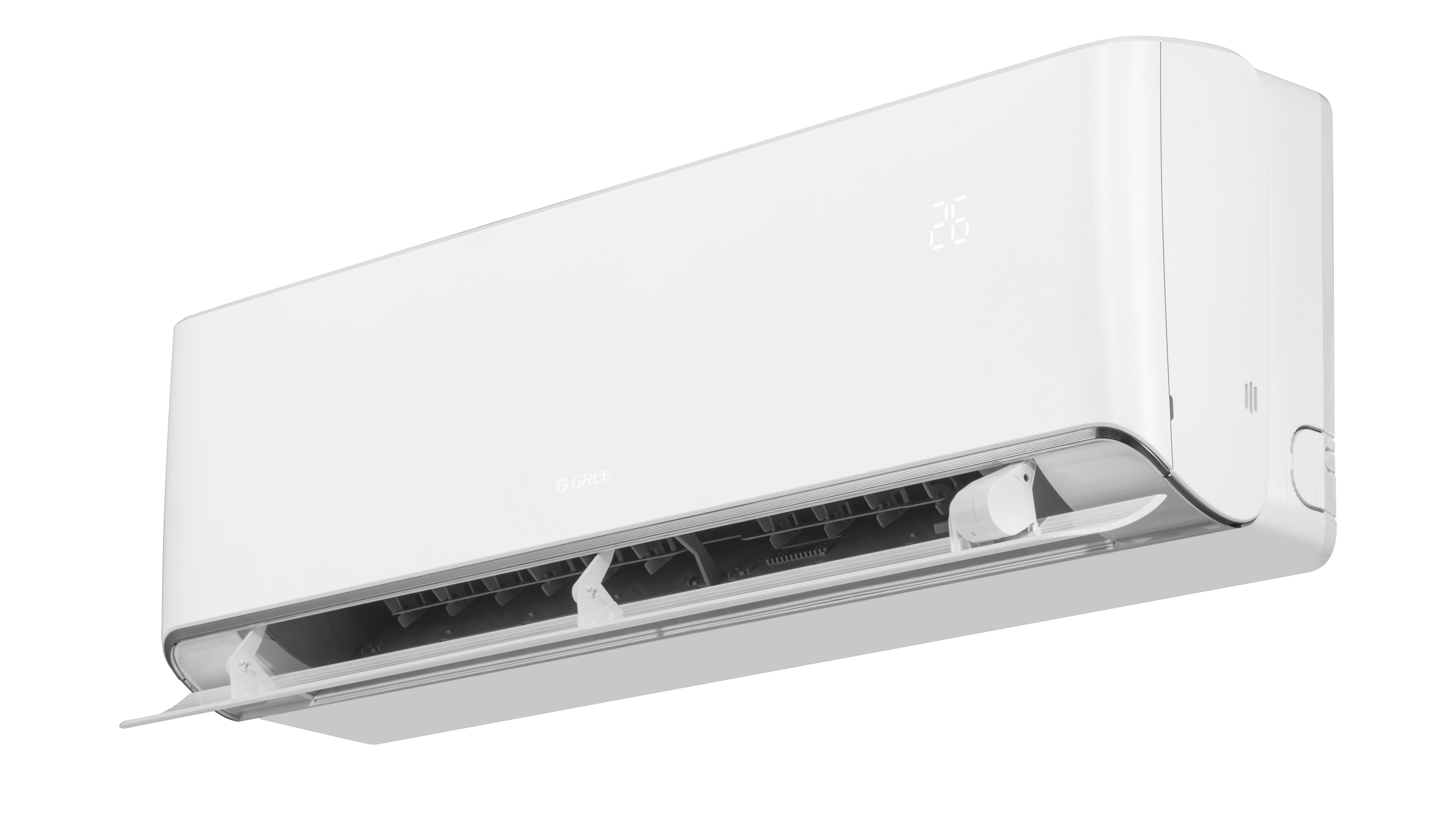

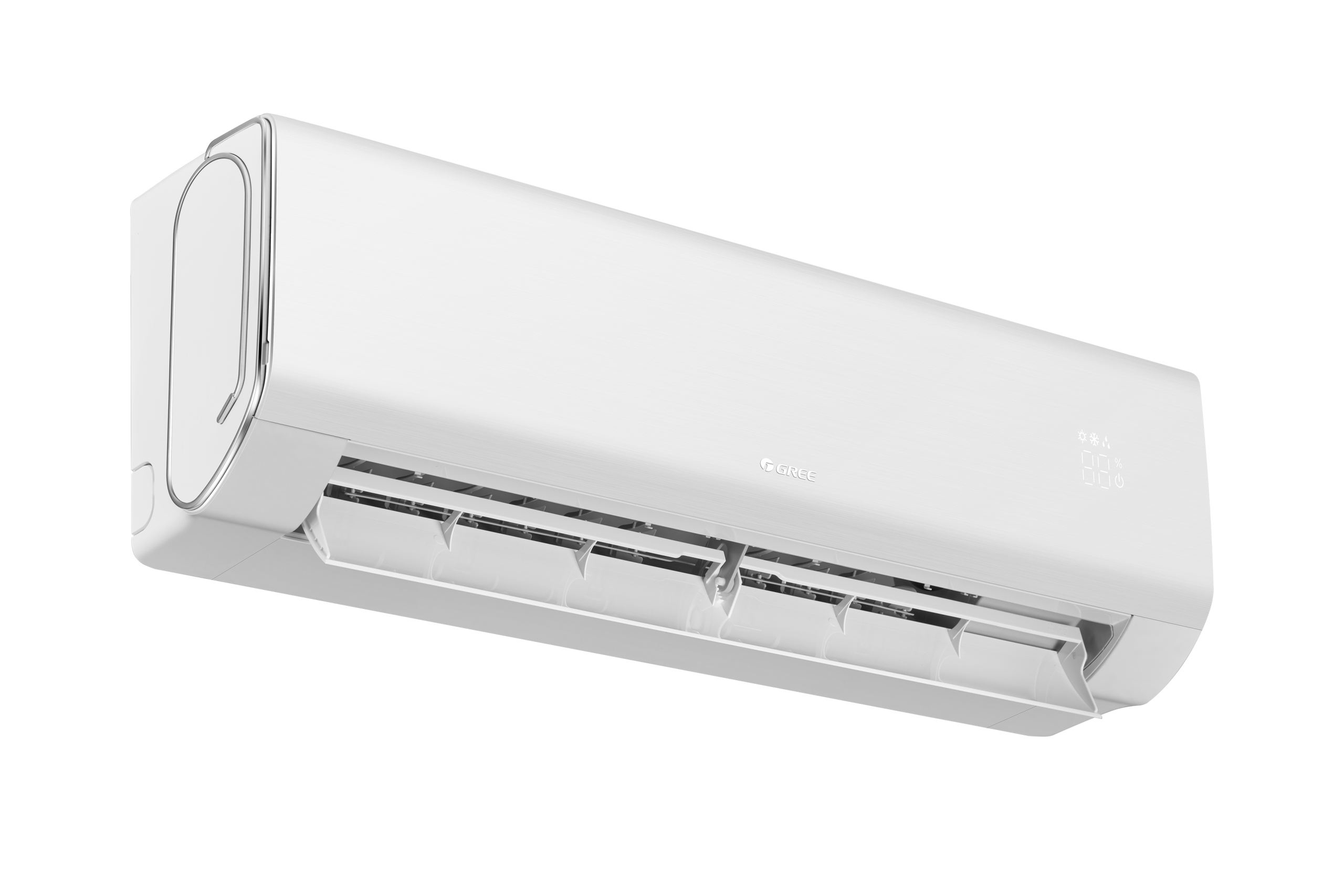

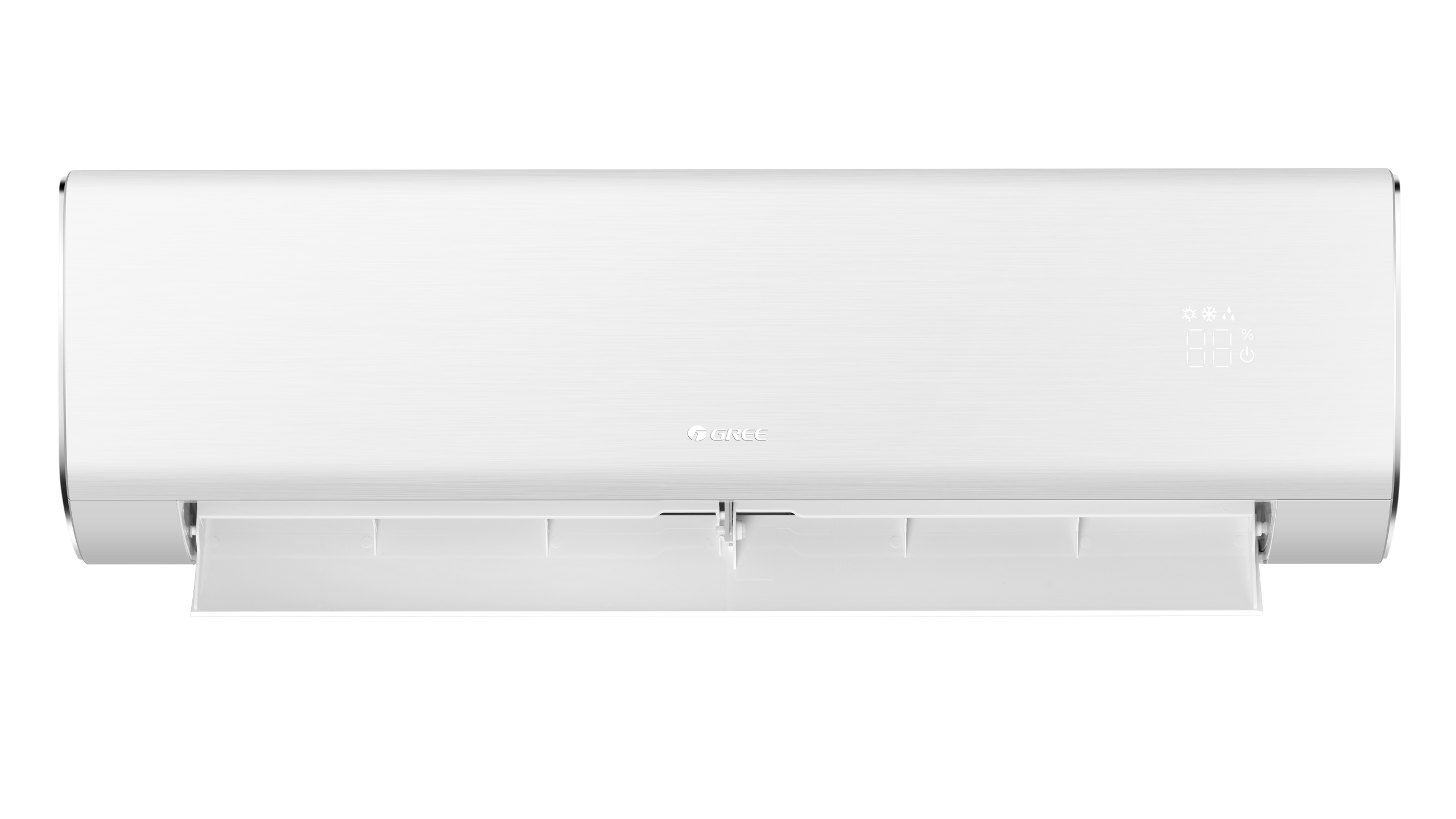

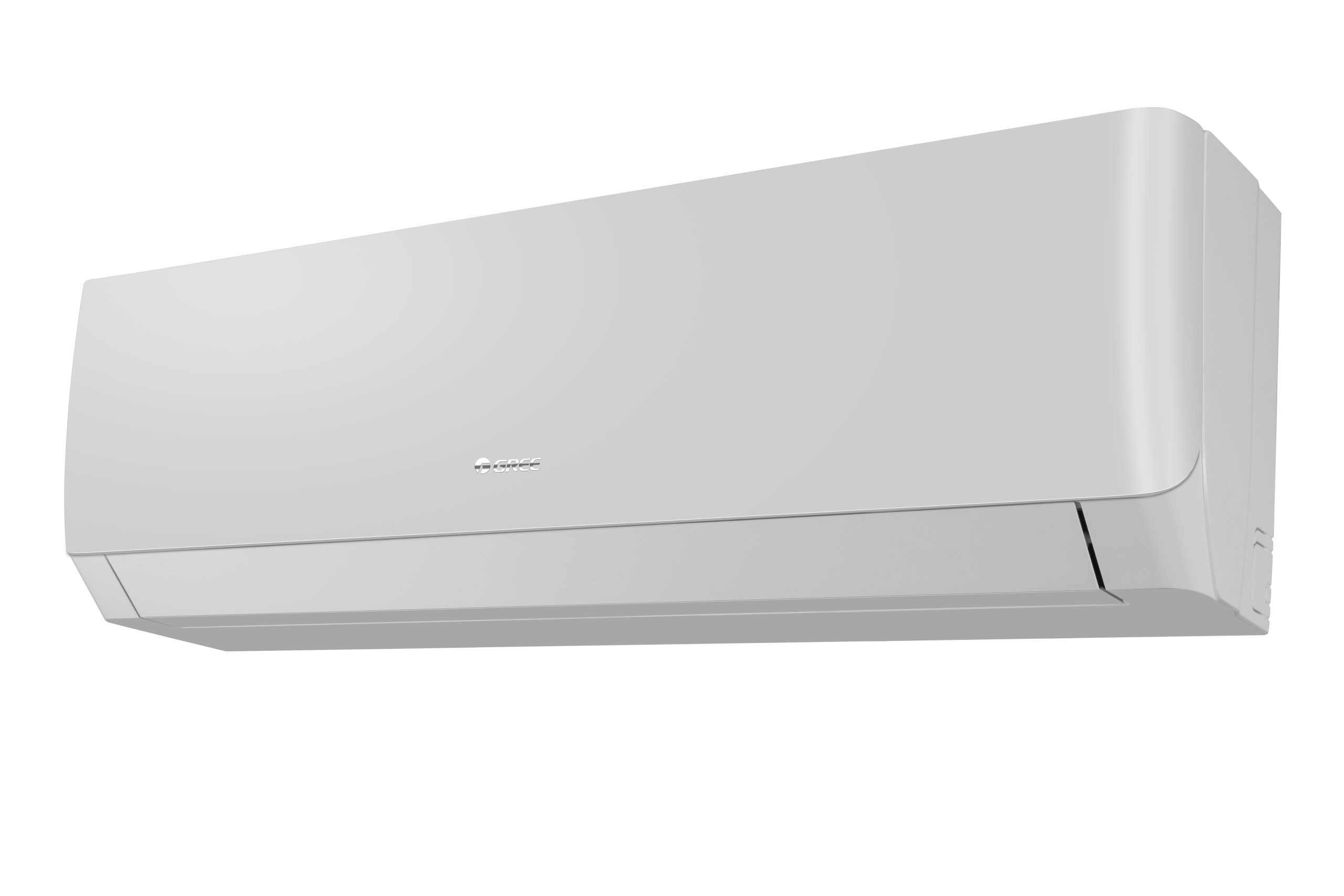

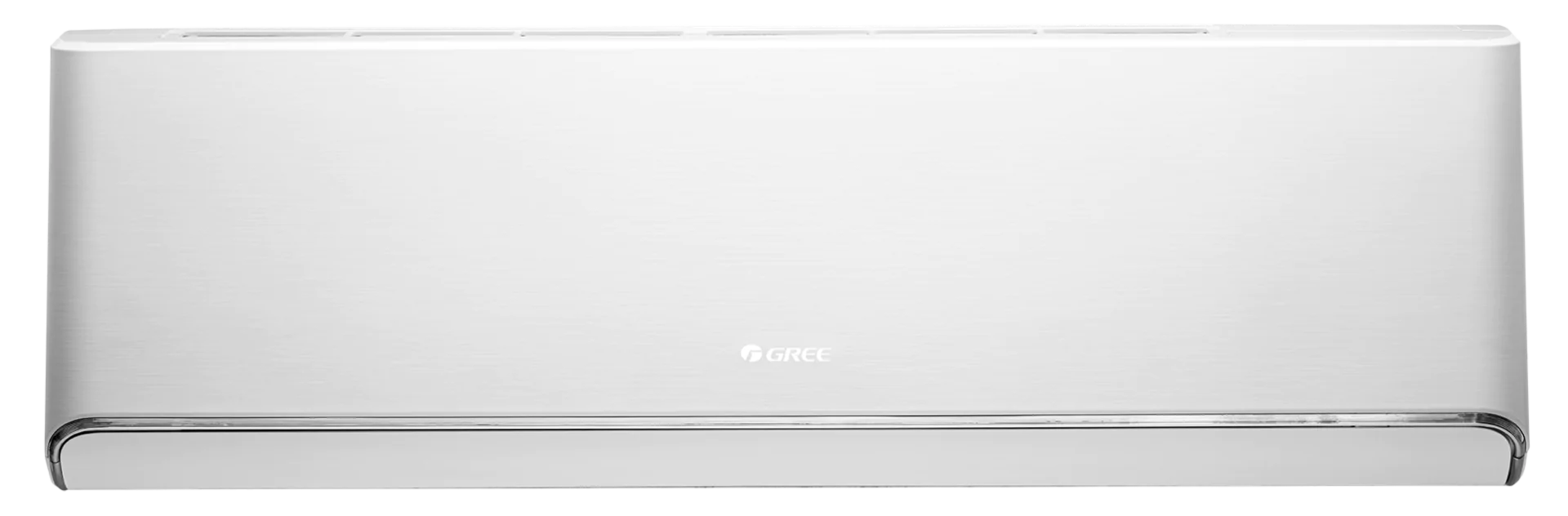

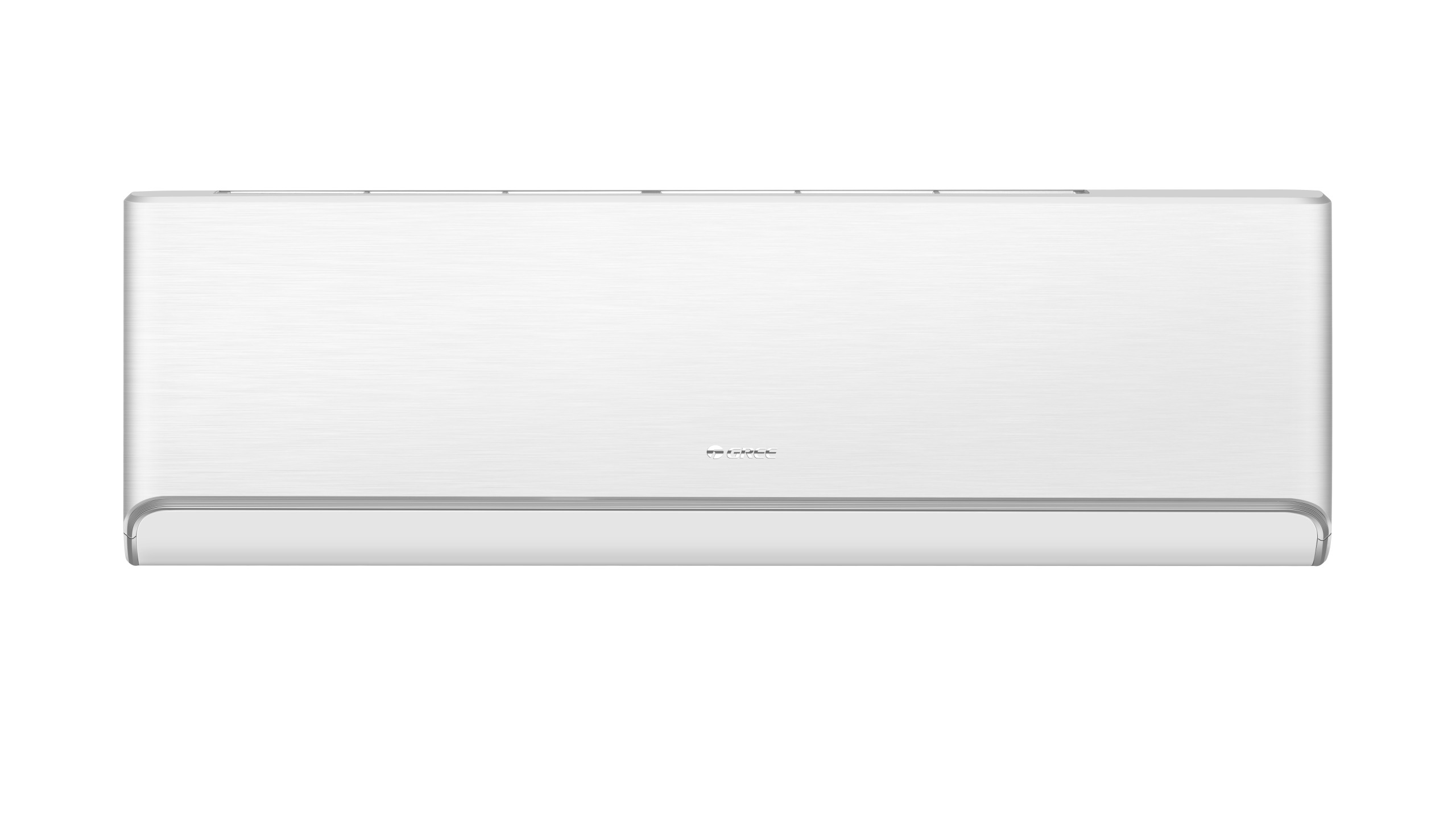

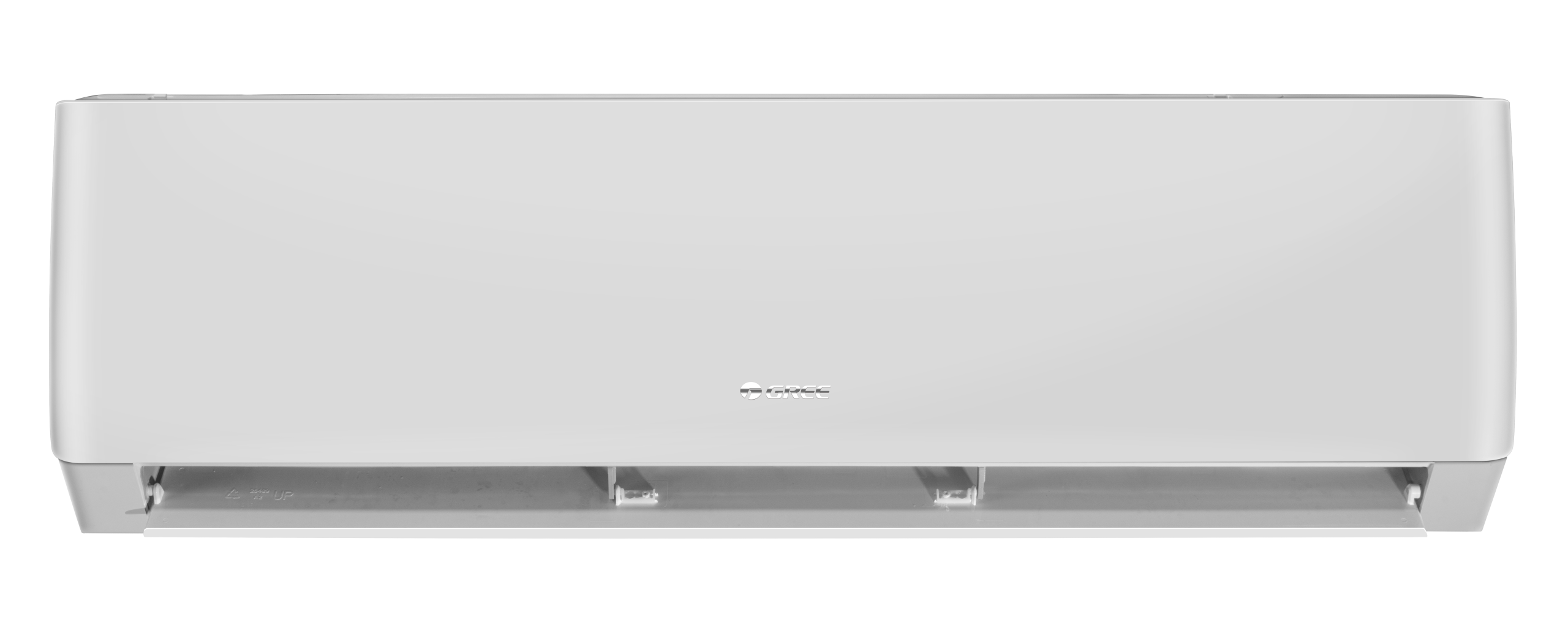

Wall-mounted indoor unit offering efficient heating and cooling with quiet operation and precise temperature control. Available in a range of capacities, it is ideal for residential and light commercial applications, delivering reliable comfort and energy-efficient performance.
| Technical Specification | 9000 Btu | 12000 Btu | 16000 Btu | 22000 Btu |
|---|---|---|---|---|
| Model | GWH09AGAXB-K6DNA1C/I | GWH12AGBXB-K6DNA1F/I | GWH18AGDXB-K6DNA1Z/I | GWH24AGDXE-K6DNA1Z/I |
| Function | CoolingHeating | CoolingHeating | CoolingHeating | CoolingHeating |
| Capacity Btu/h | 90009500 | 1200012000 | 1570017700 | 2100022000 |
| Indoor Unit Dimensions (W/H/D) mm | 704x260x185 | 779x260x185 | 982x311x221 | 982x311x221 |
| Net Weight Kg | 7.5 | 8 | 13.5 | 14 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Out. Diameter Liquid / Gas Pipes (BSA) inch | 1/4''-3/8'' | 1/4''-3/8'' | 1/4''-3/8'' | 1/4'' - 1/2'' |
| Cooling Power Input (kW) | 0.6 | 0.99 | 1.35 | 1.78 |
| Air Flow Volume (H/M/L) m³/h | 470/390/270 | 520/400/320 | 850/740/650 | 950/750/650 |
| Sound Pressure Level (H/M/L) dB | 36/32/25 | 37/33/26 | 39/34/30 | 42/37/32 |
| WiFi | YES | YES | YES | YES |
| Auto Clean | YES | YES | YES | YES |
| Cold Plasma | YES | YES | YES | YES |
| Self Diagnosis | YES | YES | YES | YES |
